Raymarine AIS 5000 Class A Transceiver Commercial

Equip your vessel with an Automatic Identification System (AIS) to share your navigation status with other vessels and shore-side monitoring centers.

Referencia: E70529

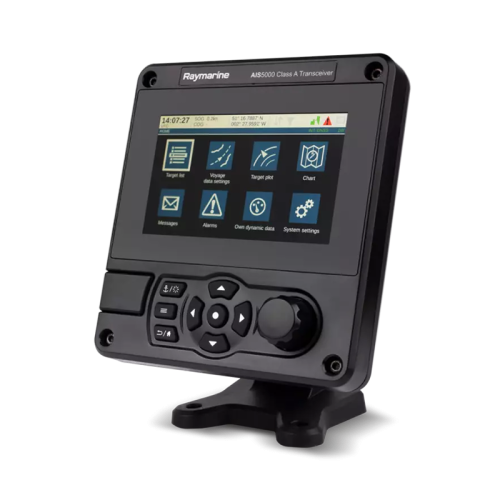

Raymarine Commercial - AIS5000 Class A Transceiver - Automatic Identification System

ECS banner charting system.jpg

Perfect For First Responders

Fourth generation AIS technology for expanded speed, range and processing performance
Full color target display with optional ENC mapping
Blue Force Tracking (BFT) of friendly units
Target of Interest (TOI) designation and interception
Integrated Man Overboard/SAR Transponder track and management system
Silent mode (receive-only) mode for anti-piracy and EMCON operations

Certified to the highest industry standards for waterproofness, shock, and vibration the AIS5000 is supplied with a junction box allowing for expanded shipboard sensor and ECDIS connectivity.

Includes

AIS transceiver
Mounting bracket
Product manual
Fixings
Warranty card
Product mounting template
Quick start guide
Power cable
14-way data cable
18-way data cable
GNSS Antenna Cable Assy

-FWEBP-S1920 (5).webp

Secure, Advanced Capability

Engineered to withstand the toughest conditions, AIS5000 is right at home onboard all vessels from the largest ocean-going ships to small, fast RIBs and interceptors. The AIS5000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and serves as a gateway device for secure text messaging in the maritime domain.

AIS5000 integrates with Raymarine encrypted multifunction displays to enable secure ship-to-ship and ship-to-shore messaging, tasking, intel sharing, SAR coordination and much more.

Raymarine’s encrypted navigation system is the only system certified to the US Federal Information Processing Standards (FIPS 140-2) and offers Secure but Unclassified Tactical Exchange Data System (STEDS) capability to authorized participating agencies.

Physical

Dimension	152 mm x 165 mm x 79 mm
Weight	2kg

Electrical

Power Supply	12 to 24 VDC
Power Consumption	<12 W

Connectors Specifications

Feature	Specification
VHF Antenna Connector	Yes
GNSS Antenna Connector	Yes
Power	Two-pin connector (cable provided)
Serial Interfaces and Alarm Relay	18-pin connector (cable provided)
Serial Inputs	14-pin connector (cable provided)
NMEA 2000	NMEA 2000 micro connector

Data Interfaces Specifications

Feature	Specification
NMEA 0183 (IEC61162-2) Bi-Directional Ports	3
NMEA 0183 (IEC61162-1) Bi-Directional Ports	3
DGPS Correction Data Input (ITU-R M.823-2)	1
Alarm Relay Output	1
NMEA 2000	1
Wi-Fi	802.11 b/g/n
Pilot Port	1 (optional)

Standards Compliance Specifications

Feature	Standard
AIS Standard	IEC 61993-2 Ed 2.0, ITU-R M.1371-5, CCNR VTT Ed 2.0
Serial Data Interface Standards	IEC 61162-1 Ed 4.0, IEC 61162-2 Ed 1.0, IEC 61162-3 2008 Ed 1.2
Environmental Standard	IEC 60945 Ed 4.0
GNSS Performance Standard	IEC 61108-1 Ed 2.0, IEC 61108-2 Ed 1.0
Product Safety	IEC 60945 Ed 4.0

VHF Transceiver Specifications

Feature	Specification
Transmitter	1
Receiver	3
Frequency	156.025 MHz to 162.025 MHz
Output Power	1 W or 12.5 W (automatic)
Channel Bandwidth	25 kHz
Channel Step	25 kHz
Modulation Modes	CMSK-TDMA
Bit Rate	9,600 bits/sec
Receiver Sensitivity	-107 dBm @ 20% PER

GNSS Receiver and Transceiver Specifications

Feature	Specification
Channels	72
GNSS Systems	Supports parallel dual mode operation from GPS and GLONASS
IEC61108-1	Compliant
IEC61108-2	Compliant
GNSS Antenna	Supplied

User Interface Specifications

Feature	Specification
Display	5” 800 × 480 full color LCD display
Encoder	Rotary encoder for selection and entry
Keys	Four menu keys and four direction keys
MicroSD	microSD™ slot for software updates and charts
