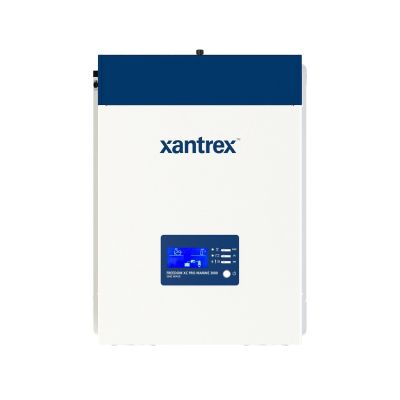

Xantrex Freedom XC PRO 3000 3000W Marine Inverter Charger 12vDC in 120vAC Out

Xantrex Freedom XC PRO Marine 3000W Inverter/Charger - 12V - 818-3015

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). Seamless integration with Micro-C NMEA 2000 Connector.The Xantrex Freedom XC PRO 3000 Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third-party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, lightweight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Features:

Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads

True Sine Wave AC Power: For the operation of sensitive and motor loads

Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off

Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis

Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input

Built-in 50A AC Transfer Relay (3KW model): The Xantrex Freedom XC PRO 3000 senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

Built-In Charger Features:

Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers

Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V

Battery Equalization: Maximizes flooded battery life

Dead Battery Charging Down to 0 Vdc

Power Share: The Xantrex Freedom XC PRO 3000 prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

Easily configurable settings to charge any lithium-ion battery

.
