Westerbeke - 12.5 EDT D-NET - 12.5kW Marine Generator

The First Electronic Diesel Generators Available NMEA 2000® Certified
The wave of the future, Westerbeke D-NET™ electronic generators are offered with standard Westerlink or optional NMEA 2000® compliant databus communication. NMEA 2000® is a network for shipboard communications developed under National Marine Electronics Association (NMEA) standards. NMEA 2000® generators, combined with other certified components, allow boat builders and their customers to significantly reduce the cost, weight and space normally required to run cables throughout the vessel.  All certified components freely communicate and are linked to just one NMEA 2000® cable using "T" connections that simplify networking.

Information At Your Fingertips
All Westerbeke D-NET™ generators have available digital controls offering simplified and easy to understand information on operational status and, if necessary, system diagnostics.  Westerbeke also features "at a glance" illuminated lights indicating proper operation.  They monitor battery voltage, generator voltage, generator frequency, oil pressure, coolant and exhaust temperature.  All this information may be viewed from a distance-all green lights indicate referenced systems are functioning properly.  Further details are available on the screen display.  The user may conveniently scroll for operational or diagnostic information without encountering "codes".  Westerbeke uses text so the user does not have to refer to a manual to dicipher numeric information.

Quiet, Slow-Speed, Digital Operation
Operating at 1800 RPM with newly designed, tuned air intake silencer and 4-cylinder engine, the 12.5 EDT generator runs smooth and quiet.  Augmenting this desired effect is the electronic governing that virtually eliminates "droop" when load is applied.  Include the optional Sound Guard SST with high quality stainless steel base and frame with stylish powder coated aluminum panels and you have a generator as attractive as it is quiet.

Standard Features
Digital display and diagnostics panel
Electronic governing
Safety shut-downs: overspeed, underspeed, low oil pressure, high exhaust and high coolant temperature
A.C. circuit breaker
50 amp battery charging alternator
Power take-off interface
Self-bleeding fuel system
Fresh water cooling and coolant recovery tank
45 degree water injected exhaust elbow
Gear driven raw water pump
Tuned air intake silencer
Anti-vibration mounts - fail safe rubber type
Lube oil drain hose and drip tray
Oil fill - top and side
Belt guard
Operator's manual and parts list
5-year limited warranty
Complies with US EPA regulations

Specifications

Cylinders: 4
Bore: 3.07 in.
Stroke: 3.62 in.
Displacement: 107.27 cu. in.
Aspiration: Natural
Length: 35.20 in.
Width: 19.10 in.
Height: 24.00 in.
Weight: 580.00 lbs.

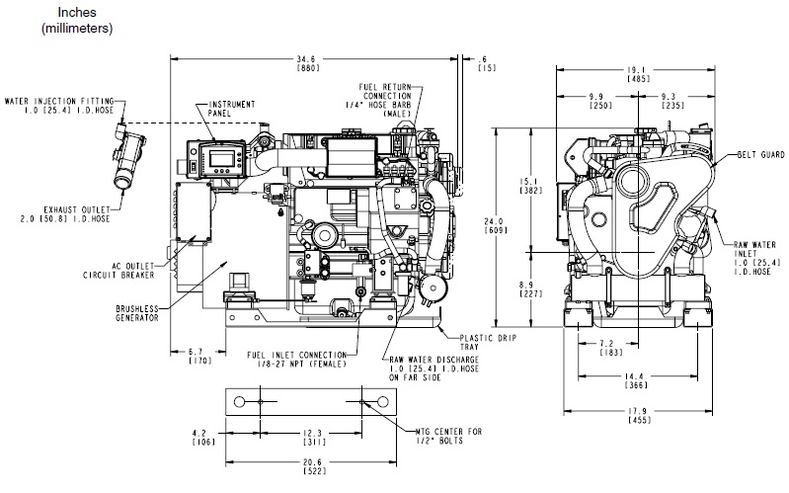

Basic Dimensions
