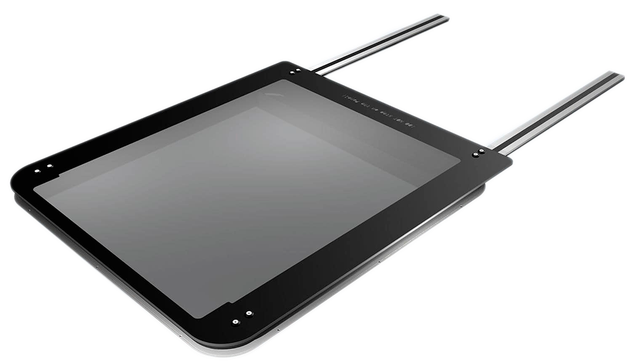

Webasto Series 20 Marine Sunroof

Webasto Series 20 Marine Sunroof. A very economical manual or electrical sliding roof for more light and fresh air on board.The roof is fully tested and preassembled including all necessary hardware allowing quick and easy installation. Part Number: Series 20

Webasto 5011394A

Reference: Series 20

Webasto Series 20 Marine Sunroof - One Size Fits All
Marine Sunroof
A very economical manual or electrical sliding marine sunroof for more light and fresh air onboard. The roof is fully tested and preassembled including all necessary hardware allowing quick and easy installation.

Select Options

  • Sunblind/Flyscreen
  • Also electrical version available

Technical Specifications of Webasto Marine Sunroof

Part Number Series 20
Frame Material Aluminum
Panel Material 8 mm tempered safety glass/grey tinted
Sliding Rail Material  Aluminum
Overall dimensions  1,995 x 1,010 (mm)
78.54 x 39.76 (in)
Cut-out length (L1)  1,010 (mm) 39.76 (in)
Cut-out width (W1)  955 (mm) 37.60 (in)
Corner radius (FRC, RCR) 80 (mm) 3.14 (in)
Operation mode Manual, stepless locking
Opening dimension  800 x 800 (mm) 31.50 x 31.50 (in)
Weight  45 (Kg) 99.20 (Lbs)

Features

  • Standard marine sunroof with large opening
  • Watertight sealing
  • Robust and proven construction
  • Manual or electrical operation
  • Stepless locking system

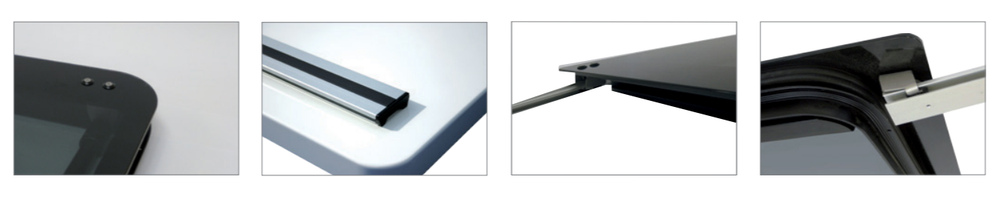

Webasto  20-Series sunroof
