Vitrifrigo / Nova Kool Secop Danfoss 101N0510 AC/DC Module 100/230V AC - 12/24V DC
Vitrifrigo / Nova Kool Secop Danfoss 101N0510 AC/DC Module 100/230V AC - 12/24V DC. Compatible with most Vitrifrigo and other brands fridges. Work with BD35F and BD50F compressors.
Replaces Isotherm P/N: SEG00030GA
Secop / Danfoss Part Number: 101N0510
Click here for details

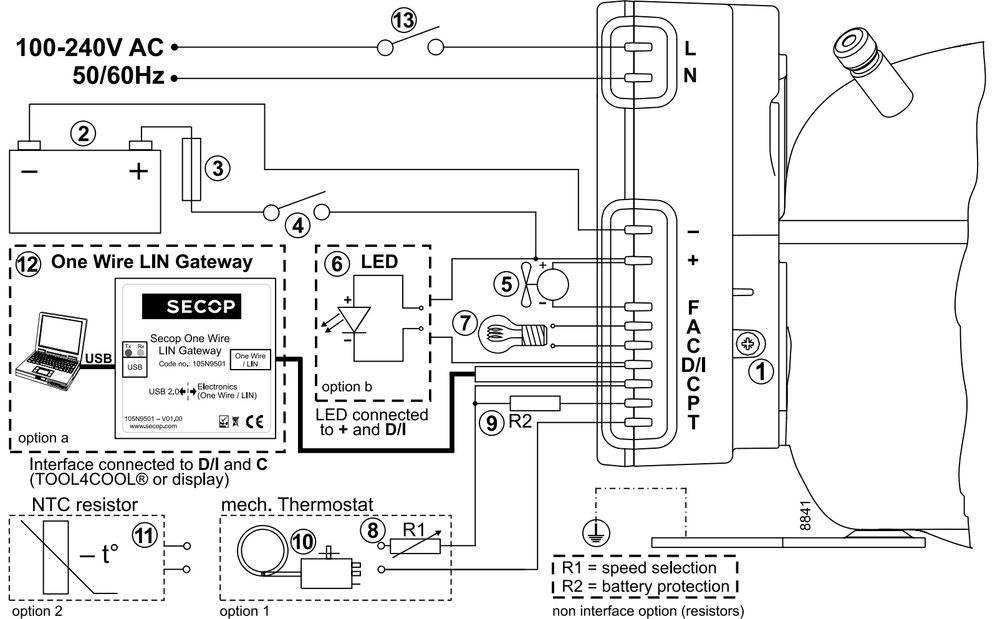

Wiring Diagram - Secop Danfoss 101N0510
The electronic unit is a multi voltage device. It can be used in both 12V/24V DC and 100-240V AC 50/60Hz power supply systems. Max. voltage is 17V DC for a 12V DC system and 31.5V DC for a 24V DC power supply system. Max. AC voltage is 265V AC and min. 85V AC for an AC power supply system. Max. ambient temperature is 55°C. The electronic unit has a built-in thermal protection which is actuated and stops the compressor operation if the electronic unit temperature becomes too high. Power consumption is limited to 100W in high ambient temperatures at low input voltage.
