Simrad NSX 3012 12" Combo Chartplotter & Fishfinder - Display Only - No Transducer
Take your experience to a whole new level with the Simrad® NSX™ smart chartplotter and fishfinder. With an innovative, modern interface featuring powerful navigation capability with C-MAP® DISCOVER X charts, you’ll see everything like never before, our IPS touch screens capturing every detail. The NSX comes with an HDI Transducer, integrated Radar and Autopilot system support, and with our handy Setup Wizard tool you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure.
Reference: 000-15222-001
In Stock: 5
$2,749.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Simrad NSX 3012 12" Combo Chartplotter & Fishfinder - Display Only - No Transducer

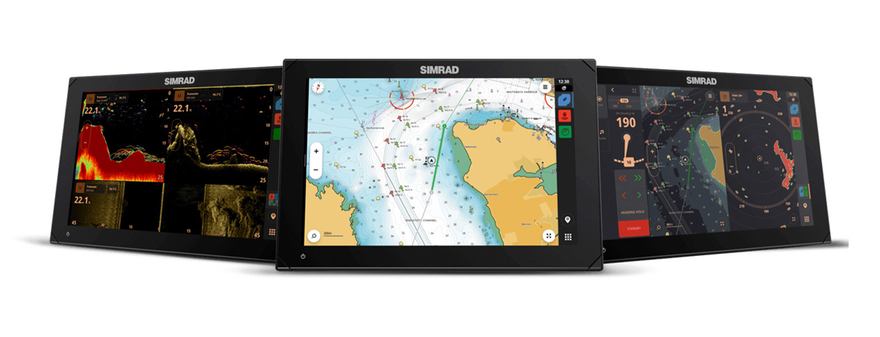

Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high definition display is viewable from any angle, in direct sunlight, and through polarised lenses with complete touch screen operation.
Bring Navigation to Life with NSX
See map details in a new way. This includes support for next-generation C-MAP® DISCOVER X™ and REVEAL X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more.
The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.
Full suite of SIMRAD TECHNOLOGY at your fingertips
NSX opens up a world of possibilities. Expand your system with powerful Simrad® Sonar, Autopilot and Radar technologies. Get high resolution images below and to the sides of your vessel with Active Imaging™ featuring CHIRP sonar, SideScan/DownScan Imaging™ and FishReveal™. Search even greater depths with a wide range of compatible 1kW transducers.
Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course. You can also identify hazards immediately. With our award-winning pulse compression HALO® Dome Radars, you can see near and far simultaneously (up to 42nm) with ultra-fast updates every second. Be ready instantly with low-power standby mode, and highlight targets using custom modes such as harbour, offshore and weather.
In the BOX
- DISCOVER X - NORTH AMERICA
- Suncover for NSX 3012
- NSX 3012, Vulcan 12" Dash Mounting Kit
Specifications
| Touchscreen | Yes |
| Screen Size | 12" |
| Cartography Brand | C-Map |
| Transducer Included | No |
Dimensions
| Display | |
| Blacklight Color | White |
| Display Resolution | 1280 x 800 px |
| Display Size | 12 inches |
| Screen Brightness | >1200 nits |
| Physical | |
| Compass Safe | 50 cm (1.7ft) |
| Dimensions W x H x D | With bracket: W: 319.5 mm (12.58") x H: 215.1 mm (8.46") x D: 86.0 mm (3.38")No bracket, no suncover: W: 309.5 mm (12.19") x H: 208.4 mm (8.20") x D: 86.0 mm (3.38")No bracket, with suncover: W: 314.5 mm (12.38") x H: 213.3 mm (8.40") x D: 91.0 mm (3.58") |
| Mounting Type | Bracket (supplied), panel mount or flush mount |
| Weight | 2.2 kg (4.9 lbs) |
| Electrical | |
| Power Consumption Max | 29.7 W (2150 mA at 13.8 V) |
| Recommended Fuse Rating | 3 A |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Enviroment | |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Shock Vibration | 100,000 cycles of 20 G |
| Waterproofrating | IPx6 and IPx7 |
| Connectivity | |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
| Ethernet Ports | 1 port (5-pin connector) |
| Connectivity WiFi | IEEE 802.11b/g/n |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | N/A |
| SD Card Storage | 1 MicroSD slot, USB port for external drive |
| Video | Ip Camera support |
| MFD | |
| AIS | Receive AIS data over NMEA 2000 |
| Cartography included | Discover X chart card of North America |
| Digital Switching | Simrad command DDS only on release to market |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| Sonar Compatibility | One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points. |
| Weather | N/A |
| GPS | |
| Correction | 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS |
| GPS Receiver Channels | 32 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Time to First Fix | N/A |
| Update Rate | 10Hz |
| Autopilot | |
| Manoeuvres turn Patterns | N/A |
| Steering Modes | N/A |
| Approvals | |
| Approvals Compliance | N/A |
| Other | |
| Interface | Multi-touch screen |
| Languages | English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish. |
| Warranty Period | 2 Years |
Features
- Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts.
- High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses.
- Quickly identify fish with FishReveal™.
- Setup Wizard to get you up and running quickly, plus a simpler sonar setup.
- Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more.
- Faster Autorouting with seamless accessibility.
Simple to Set Up & Easy to Manage
Set up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.
Other Features:
- See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
- Clean and simple interface
- Simrad® App integration – keep your chart data at your fingertips, both on and off the water
- Third-party app integration
- SD - microSD card reader
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP VIDEO support
