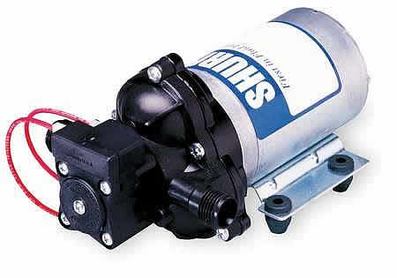

Shurflo 2088-554-144 Diaphragm Pump 3.5 GPM 12VDC
Specifications
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump CHECK VALVE: (1-Way Operation) Prevents Reverse Flow CAM: 3.5 Degree MOTOR: Permanent Magnet, P/N 11-173-01, Thermally Protected VOLTAGE: 12 VDC Nominal PRESSURE SWITCH: Adjustable from 30 to 50 PSI. Factory Set @ 45 PSI Shut-Off, Turn On 25 PSI 5 PSI LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max. PRIME: Self-Priming Up To 9.0 Ft. Vertical, Max. Inlet Pressure 30 PSI (2.1 Bar) PORTS: 1/2"-14 Male Parallel Thread MATERIAL OF CONSTRUCTION: PLASTICS-Polypropylene VALVES-Santoprene DIAPHRAGM-Santoprene FASTENERS-Zinc Plated Steel NET WEIGHT: 4.8 Lbs (2.18 Kg) DUTY CYCLE: Intermittent (See Temperature Rise Chart) TYPICAL APPLICATIONS:RV Potable Water APPROVALS: N.S.F. Listed
