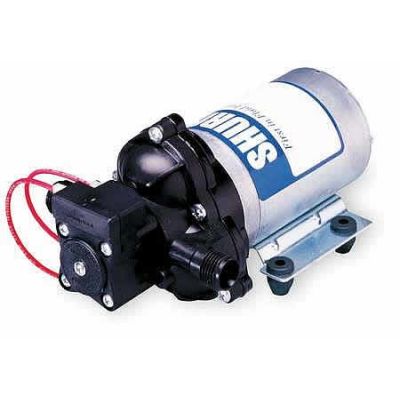

Shurflo 2088-554-144 Diaphragm Pump 3.5 GPM 12VDC
Shurflo 2088-554-144 - Diaphragm Pump Standard, 3.5 GPM Open Flow, 12VDC Intermittent Duty, Santoprene Valves, Santoprene Diaphragm, 45 PSI Demand Switch (adjustable 30-50 PSI), 1/2" MSPT Ports, Polypropylene Housing, N.S.F. Listed - Suitable for Reverse Osmosis.
Reference: SF 2088-554-144
$296.22
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Shurflo 2088-554-144 Diaphragm Pump 3.5 GPM 12VDC
Specifications
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.5 Degree
MOTOR: Permanent Magnet, P/N 11-173-01, Thermally Protected
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable from 30 to 50 PSI. Factory Set @ 45 PSI Shut-Off, Turn On 25 PSI 5 PSI
LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 9.0 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 1/2"-14 Male Parallel Thread
MATERIAL OF CONSTRUCTION: PLASTICS-Polypropylene
VALVES-Santoprene
DIAPHRAGM-Santoprene
FASTENERS-Zinc Plated Steel
NET WEIGHT: 4.8 Lbs (2.18 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS:RV Potable Water
APPROVALS: N.S.F. Listed
Specifications
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.5 Degree
MOTOR: Permanent Magnet, P/N 11-173-01, Thermally Protected
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable from 30 to 50 PSI. Factory Set @ 45 PSI Shut-Off, Turn On 25 PSI 5 PSI
LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 9.0 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 1/2"-14 Male Parallel Thread
MATERIAL OF CONSTRUCTION: PLASTICS-Polypropylene
VALVES-Santoprene
DIAPHRAGM-Santoprene
FASTENERS-Zinc Plated Steel
NET WEIGHT: 4.8 Lbs (2.18 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS:RV Potable Water
APPROVALS: N.S.F. Listed
