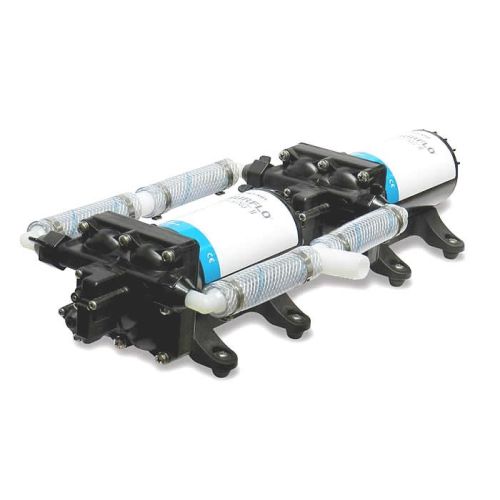

SHURFLO 4558-163-E75 Dual Diaphragm Pump High Flow System II 10.0 24V
SHURFLO 4558-163-E75 Dual Diaphragm Pump High Flow System II 10.0 24V - Intermittent Duty Sealed Motors, Up To 10.0GPM Open Flow, 55PSI Demand Switch, 3/4” Hose Barb Ports, 13.6 Amps, Ignition Protected, CE Rated, Fresh Water Pump.
Reference: SF 4558-163-E75
$1,099.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SHURFLO 4558-163-E75 Dual Diaphragm Pump High Flow System II 10.0 24V
APPLICATION:
Multi-fixture Marine fresh water system installation. This system may be used for general fresh water transfer.
PUMP DESIGN:
Type: 4 Chamber Diaphragm pump
Pump Ports: ½”-14 NPSM-Male
Manifold: ¾” Barb
Liquid: 130°F [54°C] Max
Dry-Prime: 6 feet [1.82 M]
Run Dry: Yes
Inlet Pressure: 30 PSI Max. [2.06 Bar]
ELECTRICAL:
Motor: 24V DC Permanent Magnet, Intermittent Duty.
Protection: Thermal Overload, Automatic Restart
Leads: 14 AWG, 14-¾” [37 cm] Red +, 15” [38 cm] Black
Fuse: Primary pump 7.5 Amp Recommended,
Secondary pump 7.5 Amp Recommended,
Both pumps together: 15 Amps Recommended.
Control: Primary pump: Shut-Off 55 PSI [3.8 Bar]
± 2 PSI [0.13 Bar] Re-start 40 PSI [2.8 Bar]
± 2 PSI [0.13 Bar] Maximum By-Pass 65 PSI
[4.5 Bar] ± 2 PSI [0.13 Bar]
Secondary pump: Shut-Off 45 PSI
[3.1 Bar] ± 2 PSI [0.13 Bar] Re-start 30 PSI [2 Bar]
MATERIALS OF CONSTRUCTION:
Housings: Polypro
Valves/Seals: EPDM
Diaphragm: Santoprene
Hardware: Stainless Steel
AGENCY APPROVALS:
Ignition Protection 8846, CE, IMCI Certified
SHIPPING INFORMATION:
Approx. Net Weight: 20 Pounds [9.0 Kg] ea.
Carton Qty.: 1
Approx. Carton Size: 24”L X 18”W X 6”H [61cm x 46cm x 15cm]
APPLICATION:
Multi-fixture Marine fresh water system installation. This system may be used for general fresh water transfer.
PUMP DESIGN:
Type: 4 Chamber Diaphragm pump
Pump Ports: ½”-14 NPSM-Male
Manifold: ¾” Barb
Liquid: 130°F [54°C] Max
Dry-Prime: 6 feet [1.82 M]
Run Dry: Yes
Inlet Pressure: 30 PSI Max. [2.06 Bar]
ELECTRICAL:
Motor: 24V DC Permanent Magnet, Intermittent Duty.
Protection: Thermal Overload, Automatic Restart
Leads: 14 AWG, 14-¾” [37 cm] Red +, 15” [38 cm] Black
Fuse: Primary pump 7.5 Amp Recommended,
Secondary pump 7.5 Amp Recommended,
Both pumps together: 15 Amps Recommended.
Control: Primary pump: Shut-Off 55 PSI [3.8 Bar]
± 2 PSI [0.13 Bar] Re-start 40 PSI [2.8 Bar]
± 2 PSI [0.13 Bar] Maximum By-Pass 65 PSI
[4.5 Bar] ± 2 PSI [0.13 Bar]
Secondary pump: Shut-Off 45 PSI
[3.1 Bar] ± 2 PSI [0.13 Bar] Re-start 30 PSI [2 Bar]
MATERIALS OF CONSTRUCTION:
Housings: Polypro
Valves/Seals: EPDM
Diaphragm: Santoprene
Hardware: Stainless Steel
AGENCY APPROVALS:
Ignition Protection 8846, CE, IMCI Certified
SHIPPING INFORMATION:
Approx. Net Weight: 20 Pounds [9.0 Kg] ea.
Carton Qty.: 1
Approx. Carton Size: 24”L X 18”W X 6”H [61cm x 46cm x 15cm]
