SCOT PUMP - 35068-2 - 2100 GPH - 115/230V - 50/60HZ - 3.44" Impeller - 56J - Marine Centrifugal Pump

Marine Straight Centrifugal Pumps - Scot Pump manufactures End Suction All Bronze Centrifugal pumps for seawater applications in the Marine market. These products are made from the highest quality castings and components to provide years of trouble-free service. They are rugged, heavy-duty, simple designs for easy maintenance. Scot has produced pumps for the US Navy and Coast Guard in Titanium, copper-nickel, Inconel, Monel, and various bronze alloys. GPH: 2100, Voltage: 115/230V,  Model: 35068-2 / B35068J344A03XX, Motor Frame: 56J

Replaces:
-Dometic: 340429 / 340430 / P035S Series

SCOT PUMP white

Reference: 35068-2 / B35068J344A03XX
$972.00

Free US Shipping on This Item!
Global Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

SCOT PUMP - 35068-2 - Marine Straight Centrifugal Pump

Scot Pump manufactures End Suction All Bronze Centrifugal pumps for seawater applications in the Marine market. These products are made from the highest quality castings and components to provide years of trouble-free service. They are rugged, heavy-duty, simple designs for easy maintenance. Scot has produced pumps for the US Navy and Coast Guard in Titanium, copper-nickel, Inconel, Monel, and bronze alloys 903, 922, 954, and 958.

35067-2 / B35067K300A03XX

Liquids and Temperatures

The corrosion-resistant alloys used are compatible with common liquids including water, water solutions, oils, and many commercial chemicals. Severe solvents are not compatible with the Nitrile and should not be pumped.

Suction Lift  These centrifugal pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line, and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on the non-leaking foot valve for starting capability.

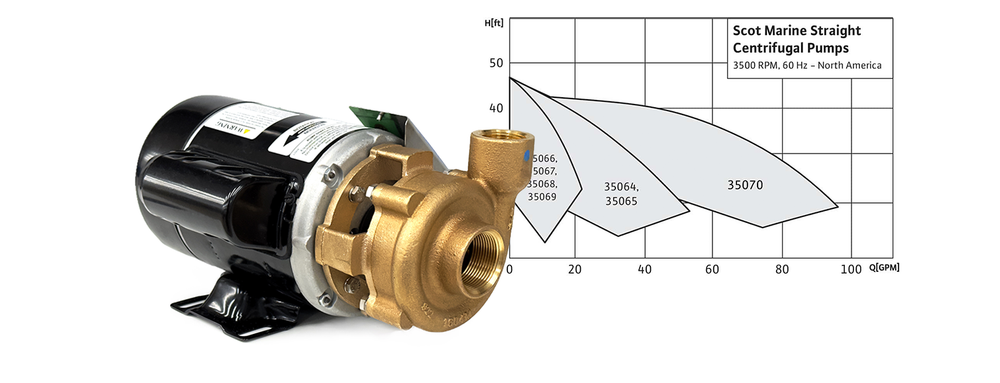

Scot Pump - 35067-2 - CHART drawing

Pump Number Driver Motor
Chart
Pump
Head
Impeller Hertz RPM Frame Max
Flow
Max
PSI
Case Type Suct Dish
35067-2 MP Stainless
Steel
Bronze Bronze 50 2900 J48 33 15 NPT 1.25 1
35067-2 MP Stainless
Steel
Bronze Bronze 60 3500 J48 33 21 NPT 1.25 1

Details

Application Air Conditioning Refrigeration Cooling Water Circulation Max Flow: 90 GPM Max. Head: 48ft
Technical Data NEMA 50/ 60 Hz JM Frames TEFC Motor is Standard NPT Connections Marine Bronze case, Impeller, and Adapter

SCOT PUMP Equivalents

DOMETIC/ OBERDORFER SCOT PUMP
PART NUMBER 340429/ P035S 35067-2 / B35067K300A03XX
DRIVER MP MP
METAL SEA WATER BRONZE SEA WATER BRONZE
MOTOR CHART STAINLESS STEEL STAINLESS STEEL
PUMP HEAD BRONZE BRONZE
IMPELLER BRONZE / 3.44" BRONZE / 3.44"
HP 1/3 1/3
HERTZ 50/60 50/60
GPH 2100 2100
VOLTAGE 115/230V 115/230V
RPM 2900 2900
FRAME 56J 56J
MAX FLOW 33 33
MAX PSI 15 15
CASE TYPE NPT NPT
SUCT 1.25 1.25
DISH 1 1

Features

Scot Pump - Engine ROOM 2

All Bronze marine centrifugal pump High Capacity Freshwater or Seawater applications.
Presicion machined to close tolerances for consistent performance.
Heavy-Duty cast construction with a close-coupled back pull-out design.
Enclosed & Semi-open impeller with continuous duty motor.
Shaft seal rated at 75psi - 5 BAR, with Seawater Buna rubber parts, ceramic stationary and carbon rotating element, stainless steel spring and metal components.
2 pole totally enclosed fan cooled IP-44 motor, that meets marine, European, and Coast Guard ignition protected requirements.
