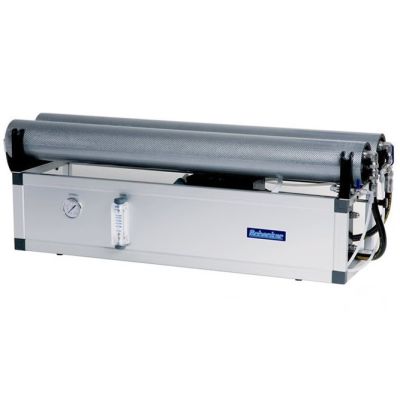

Schenker Analogic Modular Watermaker 230L W/ Analogic Remote Panel
A compact unit, the Schenker Analogic Modular Watermaker 230L has a wide output range able to satisfy any watermaking needs. Capacity: 230 lit/h - Gal/h 60. 12 / 24 VDC. Automatic pressure regulation. Low / High pressure block. Remote Functions: Remote start / stop. Automatic and intensive rinsing. *Free US Shipping!
Special order item, 2-3 weeks lead time.
Reference: 230M12A
$17,494.00
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Schenker Modular 230L Watermaker with Analogic Remote Panel - 230 lit/h - Gal/h 60
A compact unit, the Schenker Analogic Modular Watermaker 230L has a wide output range able to satisfy any watermaking needs.
Schenker Watermakers, as an alternative to the high pressure pumps of traditional systems, make use of a new patented device (Energy Recovery System) that amplifies the pressure supplied by the low pressure pumps, recovers most part of the spent energy, thus enabling very high energy efficiency. The consumed energy is up to 80% lower than traditional systems.
Capacity: 230 lit/h - Gal/h 60
Power supply: 12 / 24 VDC
Consumpition: 1.2k watt
Weight: 209 Lbs
Membranes n°2 4" x 40"
WATERMAKER FUNCTIONS
- Automatic pressure regulation
- Low pressure block
- High pressure block
- No cycling block
- Low voltage block

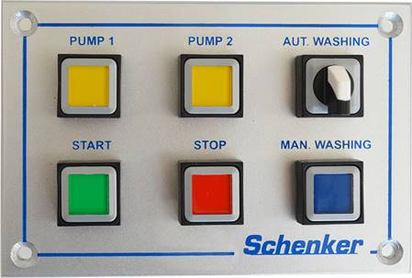

REMOTE PANEL FUNCTIONS
- Remote start / stop
- Automatic rinsing
- Intensive rinsing
THE KIT INCLUDES
- Watermaker fitted with Energy Recovery System
- Pre-pump
- Feed pump
- 20 micron filter (length 20”)
- 5 microns filter (length 20”)
- Active carbon filter with electrovalve
- Filters key
- Non return valve
- Fresh water hose (5 mt.)
- Control box
- Remote digital panel
- Remote panel extension cable (10 mt)
- Installation kit (assortment of fittings and screws)
- Owner manual
.jpg)
Established in 1998, Schenker is a leading manufacturer of high quality watermakers based on an energy recovery system. The company owns 3 patents and has a long history of investing in research and development, focused on providing customers with eco-sustainable, simple and reliable solutions for making water.
