GP-705 Heavy Duty Oil Change System, 24V, 5 Valves

REVERSO GP-705 fast lube oil change system with gear pump. Simplifies oil changes and reduces chances of oil spills. Self-priming, reversible flow (drains and fills engine). For larger and commercial applications. Central service point for multiple equipments. 24V with 5 valves. MFG #: 44-2409

Max Hose Length from Engine to System: 15 ft / 4.5m
Max
Hose Length from System to Container: 40 ft / 12m

NO LONGER AVAILABLE

Reference: 44-2409
Reg Price: $1,289.99
CPlus Price: $1,173.89
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

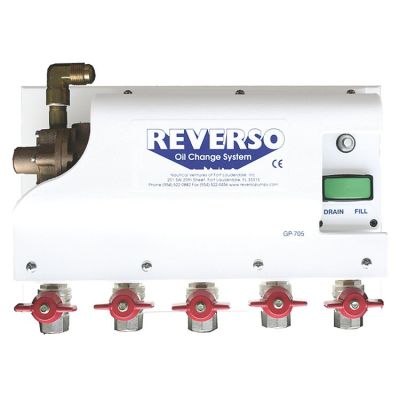

Reverso GP-705 Heavy Duty Oil Change System - 24V with 5 Valves (44-2409)

The Reverso GP-700 series is for larger and commercial applications. This permanently mounted pump and manifold system both empties and refills the oil reserviors of engines, transmissions, and gensets on single or multiple engines. High speed reversible pump transfers oil to and from remote containers at 3 GPM.

Reverso has been the premier maker of oil change systems for over 20 years.This product is installed as standard equipment by a majority of boat builders.

*Installation instructions can be found below, in Downloads section.

Features of GP-700 Series:

• Reversible flow (Drains and fills engines)
• Self-priming
• Compact
• Simplifies oil changes
• Switch guard protection
• Reduces chances of oil spills
• Central service point for multiple equipment
• For larger and commercial application

Specifications of The Reverso GP-705 (44-2409):

Flow Rate: 3 GPM / 11.35 LPM
Max. Hose Length from Engine to System: 15 ft / 4.5m

Max. Hose Length from System to Container: 40 ft / 12m
Motor: DC 24V
Breaker: 20A@12V, 10A@24V
Valves: 5
Pump Ports: 1/2" Flare
Manifold Ports: 1/2" Female NPT
Base: Marine grade starboard - white
Cover: High-impact plastic
Pump Body: Brass
Gears: Bronze
Shaft: Stainless Steel
Seal: Fluoroelastomer lip seal
Size (L X H X W): 14.5”(368.3mm) x 9.1”(232mm) x 4.9” (124.5mm)
Weight: 23 lbs.


Operation

Reverso GP 705 Heavy Duty Oil Change System 44-2409
