CP570 Professional CHIRP Sonar Module, tournament & offshore blue water fishing

CP570 Professional CHIRP Sonar Module, tournament & offshore blue water fishing

CP570 Professional CHIRP Sonar Module, tournament & offshore blue water fishing

Customer ratings and reviews

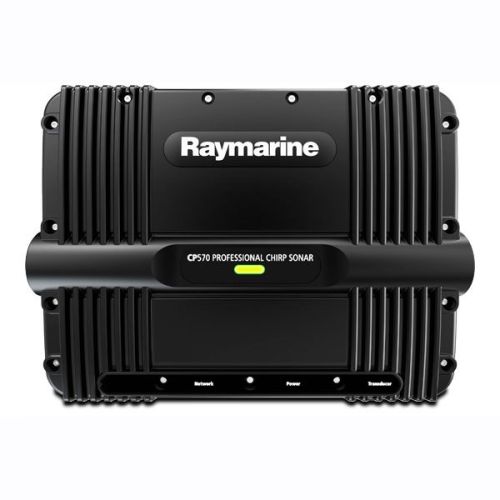

Raymarine CP570 Professional CHIRP Sonar Module, tournament & offshore blue water fishing, target definition, enhanced sensitivity, sharper fish targets. 4kW output power, rated for offshore use and rough conditions. Intelligently filters noise, reliable bottom tracking. TruZoom magnification mode. Two adjustable sonar channels.

Mfg # E70258


E70258

$1,769.00

Buy Now!

Add to cart

By buying this product you can collect up to 176 Citimarine points. Your cart will total 176 points that will be converted into a voucher of $17.60 towards your next purchase! Must be to collect points.

More info

The Raymarine CP570 Professional CHIRP Sonar Module, tournament & offshore blue water fishing has a superior target definition and enhanced sensitivity using Raymarine’s exclusive wide spectrum CHIRP sonar technology. With 10 times the resolution of ordinary sonars the CP570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.

CP570 is a high-performance CHIRP sonar module for professional and tournament fishing, using two independent CHIRP channels. Transmitting with up to 4kW of combined output power, rated for offshore use and rough conditions. Intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking. TruZoom magnification mode reveals extra target detail without any loss of resolution and ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.

Target fish, identify bait, hunt for fish in different parts of the water column and track the sea floor down to 10,000' with two adjustable CHIRP sonar channels.

Choose transducers with low, medium or high CHIRP frequencies in a variety of beamwidths, and CP570 automatically recognizes connected transducers and adjust sonar parameters for optimized performance. View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse II powered multi-function displays.

Features:
- Compatible Displays: aSeries, cSeries, eSeries, gS Series
- Transmit Power: Maximum 4kW output using two independent CHIRP channels
- Frequency: Dual independent CHIRP channels from 25 to 250kHz
- Maximum Depth: 10,000'
- Width: 13 13/16"
- Height: 9 13/16"
- Depth: 4 5/16"
- Transducer: Sold separately
- Voltage: 12/24V DC
- Power Consumption: 30.6W (Maximum)
- Data Interface: RayNet (SeaTalkhs)
- Waterproof Rating: IPX6
- Warranty: Three years (with product registration)

Raymarine Logo

Warranty On Raymarine CP570 Professional CHIRP Sonar Module, tournament & offshore blue water fishing

*2 Year Standard Raymarine Warranty. Extend into 3 Year Warranty by Registering Product With Raymarine. Your Proof of Purchase documentation is important. Please keep it in a safe place. If you need a warranty service your proof of purchase will be required.
