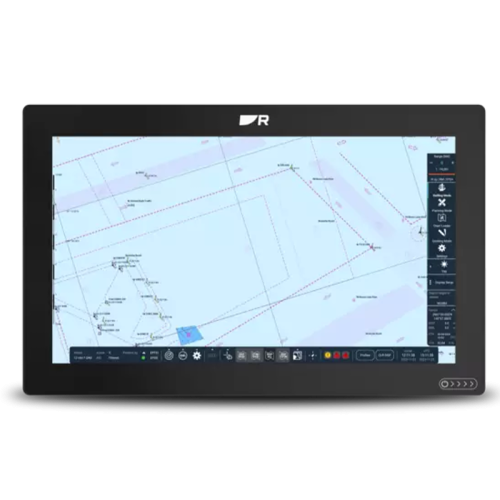

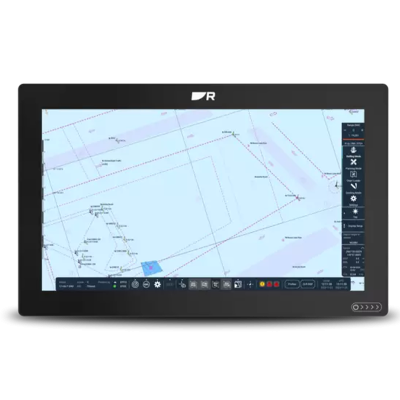

Raymarine Pathfinder ECS 16 Commercial
Pathfinder ECS (Electronic Chart System) is a commercial electronic charting system based on type approved Pathfinder ECDIS. Pathfinder ECS puts professional mariners in command of their navigation system built around safety, security, and situational awareness.
Reference: E70661-ECS
Raymarine Commercial Pathfinder ECS 16
Pathfinder ECS 16" Key Features
- Rugged 16" HD resolution touchscreen display certified to IPx6 and IPx7 standards
- Modern Pathfinder user interface and simplified menu structure keeps unwanted distractions away from the electronics chart
- Easy to access operational modes for Navigation, Route Planning and Chart installation install confidence at the helm
- Oil and contaminant protection using Raymarine’s HydroTough™ nano-coating technology
- Fan-less display design for noise free operation and reduced maintenance
- Reliable thermal management in all weather conditions
- Includes Data Collection Unit (DCU) to connect the Pathfinder ECS to other onboard systems and sensors
- Includes ergonomic marine trackball
- Designed for compliance with the following standards
- USA RCTM 10900.7 RTCM Standard for Electronic Chart Systems
- UK SY-ECS (or “mini ECDIS”)
- Norway NMA Regulations
Pathfinder ECS 16 is a commercial electronic charting system based on the type approved Pathfinder ECDIS. Designed for professional mariners, Pathfinder ECS is a reliable navigation system built around safety, security, and situational awareness.
Includes
- 16" Display
- Trackball
- Data Collection Unit
Specifications 16" Displays
| Part Number | E70661-ECS |
| Screen Size | 16" |
| Resolution | 1920 x 1080 pixels |
| Resolution | 1300 nits |
| Viewing Distance(m) | 0.6 |
| Weight (kg) | 5.9 |
| Dimensions (mm) | 248.22 x 394.9 x 174.95 |
