EV-2 Sensor Core

EV-2 Sensor Core

By buying this product you can collect up to Your cart will total 194 points that will be converted into a of $19.40 towards your next purchase! Must be to collect points.

EV-2 Sensor Core

Customer ratings and reviews

The Evolution EV Sensor Core , a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing, eliminating the need for complicated set up and calibration. Once Evolution is installed, getting started is as easy as switching the autopilot on. Free US Shipping.

In Stock: -1

E70097

$1,949.99

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

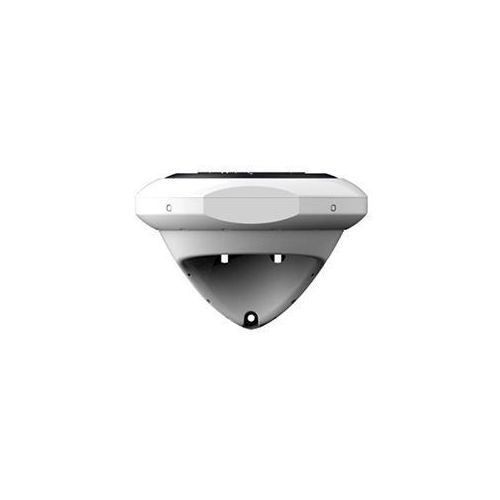

Raymarine EV-2 Sensor Core

The EV-2 Sensor Core is designed for the latest drive-by-wire steering system. EV-2 connects directly to Raymarine's SeaTalk ngbus and also features a dedicated CAN Bus port for direct connection to steer-by-wire steering systems like ZF Pod Drives, Volvo IPS* and Teleflex Optimus systems. The single CAN Bus connection to the EV-2 eliminates the need for an ACU, further simplifying installation.(*optional Volvo IPS gateway and additional cabling required)


Features

Precision monitoring of heading, pitch, roll, and yaw
Allows the autopilot to evolve instantly as sea conditions and vessel dynamics change
Flexible installation optionsSimple SeaTalk ng connectivity to the control head and ACU
Mount above or below your deck
Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

Specifications

Nominal Supply Voltage (volts DC) 12 Volt DC systems
Operating Voltage Range (volts DC) 10.8 – 15.6 Volts DC
Power Consumption 30 mA
SeaTalk ng LEN 1
Sensors 3-Axis digital
Data Connections SeaTalk ng , NMEA 2000 DeviceNet
Operating Temperature -20ºC to +55ºC
Storage Temperature -30ºC to +70ºC
Relative Humidity max 93%
Waterproof Rating IPX 6
Dimensions 140mm Diameter, 35mm Depth (incl. mounting enclosure), 95mm Depth (incl. wall bracket)
Weight 0.29 kg (0.64 lbs)
EMC Compliance Europe: 2004/108/EC, Australia and New Zealand
Raymarine Evolution Sensor Core E70097

Raymarine Logo

Warranty On Raymarine EV-2 Sensor Core

*2 Year Standard Raymarine Warranty. Extend into 3 Year Warranty by Registering Product With Raymarine. Your Proof of Purchase documentation is important. Please keep it in a safe place. If you need a warranty service your proof of purchase will be required.
