Quick Genius GP2 500 Windlass Package w/Anchor Rode
QUICK GENIUS GP2 500 WINDLASS PACKAGE WITH RODE 150W 12V
ITEM DISCONTINUED
Reference: FSGM01500008K01
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

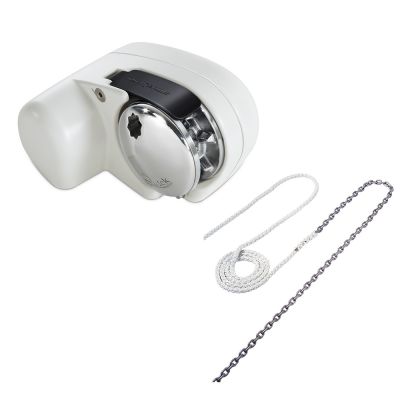

GP2 500 Windlass Package with Anchor Rode
The GP2 500 is a Horizontal windlass application windlass perfect for boats for limited space in the anchor locker. This unit comes equipped with an enclosed motor and epicyclical gearbox. The casing is composed of plastic composite material for the 150W unit, 12v.. This unit also has a manual free fall capability for quick anchoring. The unit is sold complete with the windlass, 800 up/down switch, solenoid unit, clutch handle, mounting hardware, and users manual.
For Boats from 6 to 7 Meters (20-23ft):
- Motor power: 150 W
- Motor supply voltage: 12 V
- Maximum pull: 485 lb
- Maximum working load: 154 lb
- Working load: 77 lb
- Current absorption @ working load (1): 29 A
- Maximum chain speed (2): 127 ft/min
- Maximum chain speed @ working load (2): 93 ft/min
- Weight - Mini Genius 13 lb
The Anchor Rode consists of 30ft of 8mm chain, 130ft rope.
Specifications
| Chain - Diameter (Inches) | 8mm |
| Freefall | Yes |
| Vertical/Horizontal | Horizontal |
