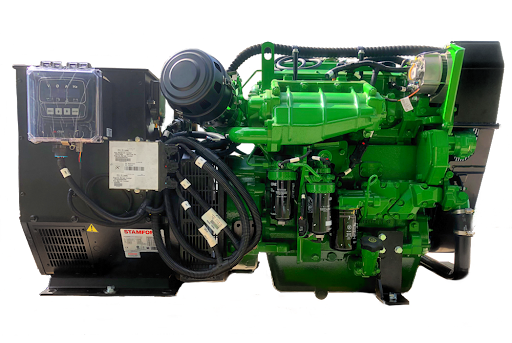

JD4-99.0 Keel Cooled Diesel Generator - 99.0 kW (60 Hz)

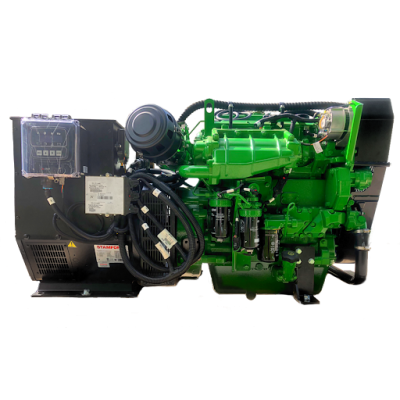

The Marine Certified JD4-99.0 KW generator by Southeastern Power Products features a John Deere 4045AFM85 engine with four cylinders and 148 horsepower, delivering 99,000 watts of power at 208 volts in a three-phase configuration.
Special Order, Contact Us!
Reference: JD4-99.0 KW
JD4-99.0 Keel Cooled Diesel Generator - 99.0 kW (60 Hz)
.png.avif)
The Marine Certified JD4-99.0 KW generator by Southeastern Power Products features a John Deere 4045AFM85 engine with four cylinders and 148 horsepower, delivering 99,000 watts of power at 208 volts in a three-phase configuration. Turbocharged and aftercooled, with a keel-cooled/wet exhaust system, it ensures reliable performance. Compact and robust, its dimensions are 68.0 x 36.0 x 38.5 inches and it weighs 2,450 lbs. Equipped with a Stamford/Newage alternator, it provides stable and efficient power for demanding marine applications.
Standard Features
-
12V DC Start / Charging
- Automatic engine shutdown for low oil & high coolant temperature
-
Fuel filter
-
Fuel transfer pump
-
Air intake silencer / Cleaner
-
Four point isolation motor mounts
-
Heavy duty steel mounting frame
-
Single bearing generator
-
Brushless exciter
Specifications of JD4-65.0 KW
| MODEL | JD4-99.0 KW |
| ENGINE JOHN DEERE | 4045AFM85 |
| CYLINDER | 4 |
| CUBIC INCH | 273 |
| BORE & STROKE | 4.21 x 5.00 |
| H.P. @ 1800 RPM | 148 H.P. |
| ASPIRATION | TURBO CHARGE & AFTERCOOLED |
| COOLING SYSTEM | KEEL COOLED / WET |
| EXHAUST | DRY EXHAUST FLANGE |
| FUEL INLET | 3/8" |
| FUEL RETURN | 1/4" |
| DIMENSIONS | L 68.0 x W 36.0 x H 38.5 |
| WEIGHT | 2,450 LBS |
| MODEL | STAMFORD/NEWAGE |
| OUTPUT VOLTS | 208 V / 3 PHASE |
| OUTPUT AMPS | 274 |
| OUTPUT WATTS | 99,000 |
Optional Equipment
- 24 V DC Start / Charging
- Control INC. Controller - Electronic AC-DC-Digital Readout
- Circuit breaker
- Remote start/Stop panel
