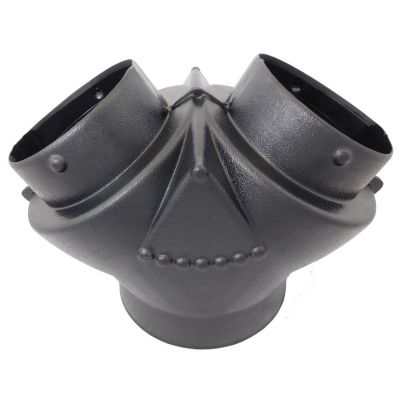

Air Conditioner Marine Grade Transition ABS "Y" Duct Fitting (Mounts Over Existing Hose Adapter) - 8" Inlet with Adjustable Baffle - Air distribution "Y" manufactured by MSI. Works with Dometic, Marine Air, and Cruisair air conditioner units. *Hose Adapter sold separately. 90-day warranty*.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Air Conditioner Marine Grade Transition ABS "Y" Duct Fitting (Mounts Over Existing Hose Adapter) - 8" Inlet with Adjustable Baffle - Air distribution "Y" manufactured by MSI. Works with Dometic, Marine Air and Cruisair air conditioner units. *Hose Adapter solds separately.
DIMENSIONS
Part Number
Dimensions (A / B / C)
228700072
4" / 4" / 2"
228700087
4" / 4" / 3"
228700086
4" / 4" / 4"
228700084
5" / 4" / 4"
228700055
4" / 5" / 3"
228700063
5" / 5" / 4"
228700079
6" / 4" / 4"
228700156
6" / 5" / 4"
228700109
6" / 5" / 5"
228700126
6" / 6" / 4"
228700155
7" / 5" / 5"
228700096
8" / 6" / 6"
*90-day warranty on Replacement parts and components, parts only.Contact usfor assistance with claims.
Double lamination of tough polyester, which encapsulates a steel wire helix, forms air-tight inner core. Seamless black polyethylene vapor barrier surrounds thick blanket of fiberglass insulation. R value 4.2 and meets or exceeds UL-181, NFPA 90A and 90B standards. Resistant to ozone, UV, and corrosion. For Class 1 Heating and AC Duct applications. Operating temperature -20°F to 250°F (-29°C -121°C). Please Select from 4" to 9" Internal Diameter
MSI 90 Degree Hose Elbow is made of ABS plastic. This hose style can be used anywhere along the air supply route. Outlet side includes a simple bump to assist in securing hose duct. Available in different sizes. 90-day warranty*.
Plastic return grilles design with rounded corners and paint-friendly materials, for use with marine A/C systems. Hidden fasteners and a unique snap-in function put these modern styled grilles in an unchallenged class of their own. They are available in different sizes. 90-day warranty*.
MSI for Dometic / Cruisair / Webasto. Teak Wood Marine AC Return Grill. Attractive Teak grill to compliment beautiful yacht interior. Return air grills have easy-to-clean, replaceable filters. 90-day warranty*. Various sizes (select below). TK/BRZ.
Each grill is measured by it’s “cut-out” dimension. Ensure that you leave 1/2 inch around the vent for the “lip” of the grills. Each grill size is calculated in inches.
MSI for Dometic / Cruisair / Webasto. Teak Supply Air Wood Grille (4 Way). Attractive Teak grille to compliment beautiful yacht interior. Supply-air grilles have easy-to-clean, replaceable filters. 90-day warranty*. Various sizes (select below). With damper.
Each grill is measured by it’s “cut-out” dimension. Ensure that you leave 1/2" around the vent for the “lip” of the grills. Each grill size is calculated in inches.
