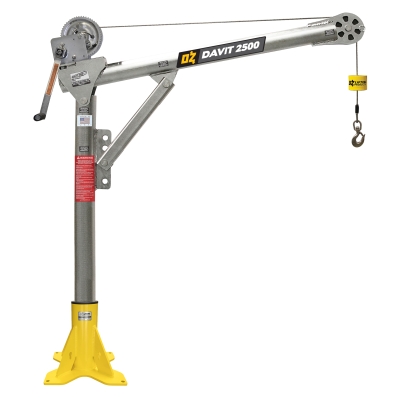

Steel Davit Crane 2500lb - OZ2500DAV
The OZ Lifting Products Steel Davit Crane is an all-steel davit crane with 2500lb. capacity options. It comes equipped with either a manual brake winch with drill drive adapter, AC electric winch, or DC electric winch.
Reference: OZ2500DAV

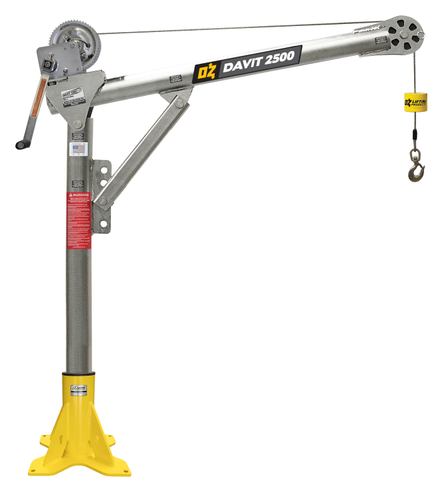

Steel Davit Crane 2500lb - OZ2500DAV
The OZ Lifting Products Steel Davit Crane is an all-steel davit crane with 2500lb. capacity options. It comes equipped with either a manual brake winch with drill drive adapter, AC electric winch, or DC electric winch. The Steel Davit is portable and requires no tools to assemble. Featuring a zinc-plated finish to prevent corrosion, can rotate 360-degrees, and features four different boom height adjustments for added versatility. Individually tested and certified at 125%. Cable assembly and bases sold separately. Made in the USA.
Features of OZ2500DAV
- 360-degree rotation

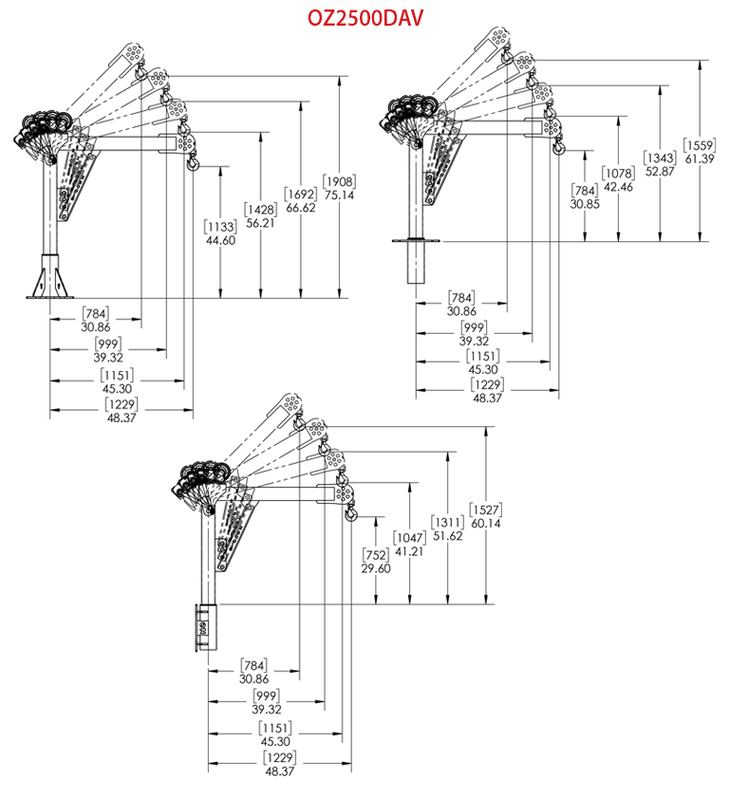

- 4 different boom height adjustments
- 2500 lb. ratings available
- ROHS compliant zinc-plated finish
- Manual DIN-rated CE winch with brake. Includes power drill adapter.
- AC & DC winch option

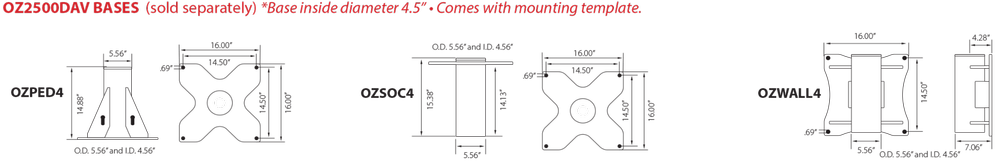

- Pedestal, wall mount, socket, and wheel bases sold separately (comes with mounting template)
- Made in USA
Product Weight
| Model | Boom | Mast | Net |
| OZ500DAV | 130 | 64 | 194 |
Load Ratings
Based on 3/16" wire rope
| First Layer | Mid Drum | Full Drum | |
| Position 1 (0°) | 2500lb | 2000lb | 1550lb |
Crane Reactions/Moments
| Model | Mast Moments(in-lb) | Mast Moment (N-m) | Suggested Bolt size |
| OZ500DAV | 121,272 | 13,702 | 5/8" Grade 5 (M16) |
