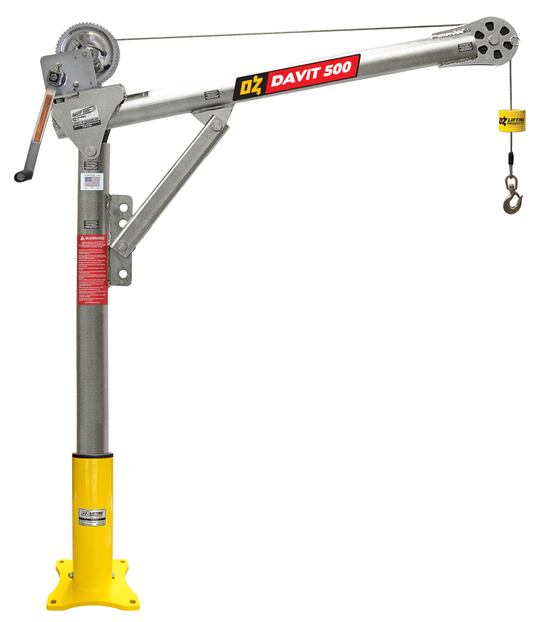

Steel Davit Crane 500lb - OZ500DAV
The OZ Lifting Products Steel Davit Crane is an all-steel davit crane with 500lb. capacity options. It comes equipped with either a manual brake winch with drill drive adapter, AC electric winch, or DC electric winch.
Reference: OZ500DAV
Steel Davit Crane 500lb - OZ500DAV

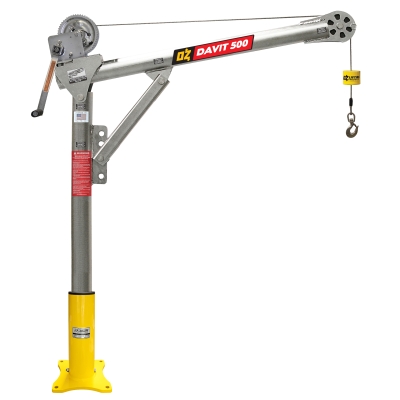

The OZ Lifting Products Steel Davit Crane is an all-steel davit crane with 500 lb. capacity options. It comes equipped with either a manual brake winch with drill drive adapter, AC electric winch, or DC electric winch. The Steel Davit is portable and requires no tools to assemble. Featuring a zinc-plated finish to prevent corrosion, can rotate 360-degrees, and features four different boom height adjustments for added versatility. Individually tested and certified at 125%. Cable assembly and bases sold separately. Made in the USA.
Features of OZ500DAV
- 360-degree rotation
- 4 different boom height adjustments
- 500 lb. ratings available
- ROHS compliant zinc-plated finish
- Manual DIN-rated CE winch with brake. Includes power drill adapter.
- AC & DC winch option

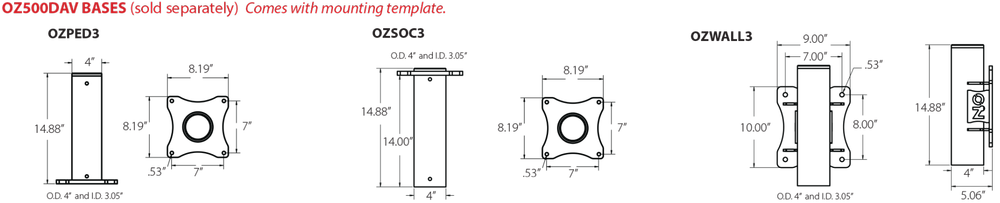

- Pedestal, wall mount, socket, and wheel bases sold separately (comes with mounting template)
- Made in USA
Product Weight
| Model | Boom | Mast | Net |
| OZ500DAV | 27 | 23 | 50 |

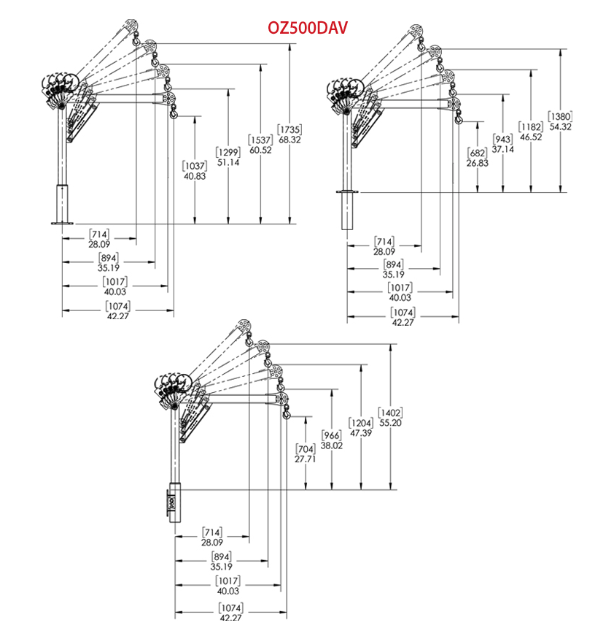

Load Ratings
Based on 3/16" wire rope
| First Layer | Mid Drum | Full Drum | |
| Position 1 (0°) | 500lb | 500lb | 500lb |
Crane Reactions/Moments
| Model | Mast Moments(in-lb) | Mast Moment (N-m) | Suggested Bolt size |
| OZ500DAV | 21,420 | 2,420 | 1/2" Grade 5 (M12) |
