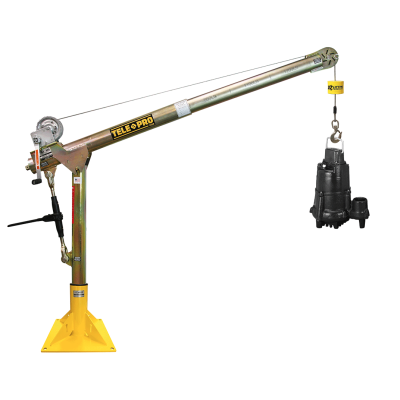

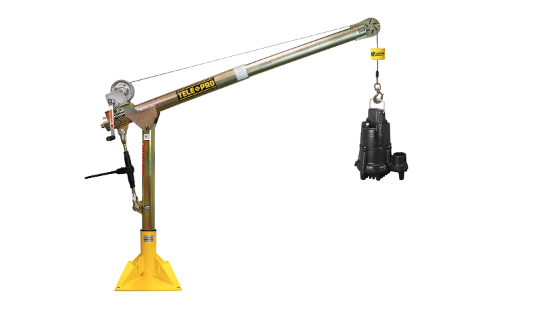

Tele-Pro Davit Crane 2500lb - OZTP2500DAV
The OZ Lifting Products Tele-Pro davit crane features an industry-first telescoping boom adjustment while under load. This patented feature provides the user with ultimate control.
Reference: OZTP2500DAV
Tele-Pro Davit Crane 2500lb - OZTP2500DAV
The OZ Lifting Products Tele-Pro davit crane features an industry-first telescoping boom adjustment while under load. This patented feature provides the user with ultimate control. The supplied ratchet screw jack allows the user to adjust the boom from horizontal to 45-degrees while under load. 360-degree rotation of the crane allows even more benefits. Smart Latch technology at the boom/mast means the Tele-Pro davit cranes require no tools to assemble and the zinc-plated finish provides added corrosion protection. Manual brake winch, or AC and DC electric winches are also available. Individually tested and certified at 125%. Cable assembly and bases sold separately. Made in the USA.
Features of OZTP2500DAV
- Telescoping boom adjustment while under load
- Ratchet screw jack adjusts boom under load
- 360-degree rotation of crane on sleeve bearing
- DIN-rated hand winch equipped standard with a load holding weatherproof Weston brake (cable assembly sold separately)
- Quick connect winch handle with power drill adapter included
- Smart Latch technology at boom/mast connection
- Corrosion-resistant zinc-plated finish
- Headache ball (OZHB10) available and sold separately
- Carrying case (OZRB1) available and sold separately
- AC and DC power winches available and sold separately
- Pedestal, wall mount, socket, and wheel bases sold separately (comes with mounting template)
- Made in USA

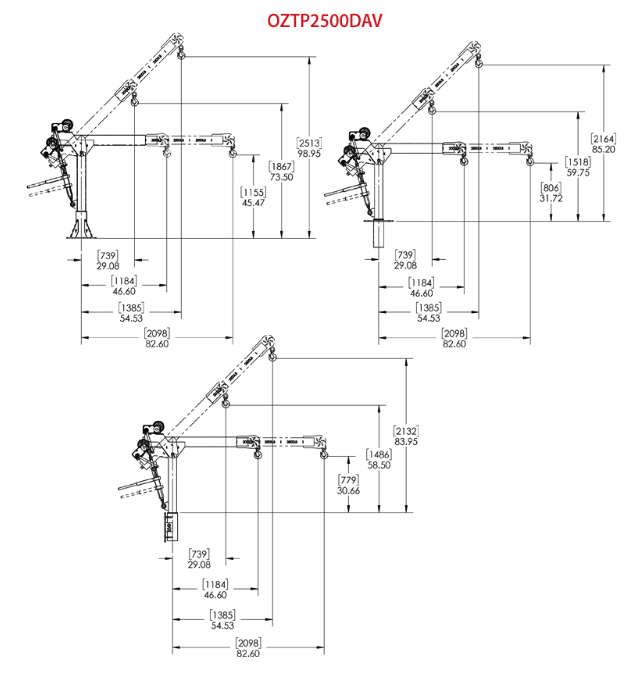

Specifications
| Boom | Mast | Total Net | |
| OZTP1200DAV (lb.) | 288 | 62 | 350 |
Load Rating
OZTP2500DAV LOAD RATINGS – Horizontal Boom Angle – Based on 1/4 synthetic rope
| Load Rating (lb.) | First Layer | Mid Drum | Full Drum |
| Boom Position 1 at 46" | 2000lb | 2000lb | 1550lb |
| Boom Position 2 at 58" | 1900lb | 1900lb | 1550lb |
| Boom Position 3 at 70" | 1600lb | 1600lb | 1550lb |
| Boom Position 4 at 82" | 1300lb | 1300lb | 1300lb |
OZTP2500DAV LOAD RATINGS – 45° Boom Angle – Based on 1/4 synthetic rope
| Load Rating (lb.) | First Layer | Mid Drum | Full Drum |
| Boom Position 1 at 28" | 2000lb | 2000lb | 1550lb |
| Boom Position 2 at 37" | 2000lb | 2000lb | 1550lb |
| Boom Position 3 at 45.5" | 2000lb | 2000lb | 1550lb |
| Boom Position 4 at 54" | 2000lb | 2000lb | 1550lb |
OZTP2500DAV LOAD RATINGS – Horizontal Boom Angle – Based on 3/8 inch wire/synthetic rope or 5/16 inch synthetic rope
| Load Rating (lb.) | First Layer | Mid Drum | Full Drum |
| Boom Position 1 at 46" | 2500lb | 2015lb | 1550lb |
| Boom Position 2 at 58" | 1900lb | 1900lb | 1550lb |
| Boom Position 3 at 70" | 1600lb | 1600lb | 1550lb |
| Boom Position 4 at 82" | 1300lb | 1300lb | 1300lb |
OZTP2500DAV LOAD RATINGS – 45° Boom Angle – Based on 3/8 inch wire/synthetic rope or 5/16 inch synthetic rope
| Load Rating (lb.) | First Layer | Mid Drum | Full Drum |
| Boom Position 1 at 28" | 2500lb | 2015lb | 1550lb |
| Boom Position 2 at 37" | 2500lb | 2015lb | 1550lb |
| Boom Position 3 at 45.5" | 2500lb | 2015lb | 1550lb |
| Boom Position 4 at 54" | 2000lb | 2000lb | 1550lb |
Crane Reactions/Moments
| Model | Mast Moments(in-lb) | Mast Moment (N-m) | Suggested Bolt size |
| OZTP1200DAV | 120,658 | 13,633 | 5/8" Grade 5 (M16) |
