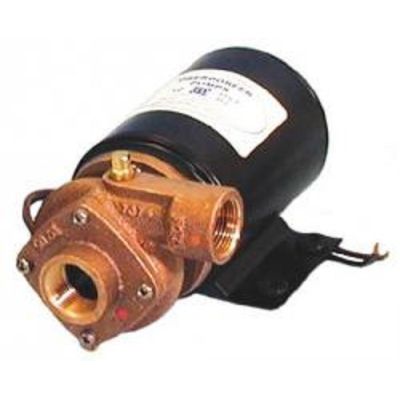

OBERDORFER 170M-A87 Centrifugal Pump

Oberdorfer - 170M-A87 Centrifugal Pump. Inlet 3/4" - Outlet 3/4" - 20 GPM - 32VDC - 3480 RPM - 1/10HP - Mechanical Seal Type - 7 lbs Weight. Rudge corrosion resistant bronze construction. The mechanical seal is a carbon and ceramic mechanical rotary face type for positive sealing. The stator is made from molded nitrile. Compact and Light.

Part Number: 170M-A87
Free US Shipping.


Reference: OB 170M-A87
$780.99

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Oberdorfer - 170M-A87 Centrifugal Pump - 20 GPM - Inlet 3/4" - Outlet 3/4" - 32VDC - 1/10 HP

170M-A87

These Oberdorfer™ centrifugal pumps have a single open vane rotating impeller. Liquid enters at the center and is thrown outward radically by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.

The flow of these pumps can be conveniently controlled by a throttling valve in the discharge line. Horsepower demand will decrease as the pressure increases. Maximum horsepower occurs with a wide open discharge.

The lip seal is Nitrile with stainless steel spring reinforcement on a stainless steel motor shaft. The seal is friction press fit in a machined housing counter bore. Excessive system pressures above 15 PSI are not recommended as the seal could be forced out of the pump housing.

Features

  • Rugged Corrosion Resistant Bronze Construction
  • Compact & Light
  • Nitrile Lip Seal STD; Optional fluoroelastomer Lip
  • TEFC Motors With Corrosion Resistant Passivated 316 SS Shafts
  • 1/10 HP Permanent Magnet 12V, 24V, 32V DC Motors
  • Rubber Base Grommets For Vibration Dampening
  • Insulated Leads
  • 1/13 HP Permanent Magnet 12V DC Motor (A95)

Liquids and Temperatures

This pump is more than capable of pumping water, water solutions, and a wide range of commercial chemicals. Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped. However, when pumping viscous liquids (as compared with water) a reduction in flow and pressure occurs and the required horsepower increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Questions about the chemical compatibility of special liquids should be referred to the factory.

Drive

One of the outstanding features of this pump and motor unit is its compact D.C. motor size. Although small, adequate motor power is available. Motors are available in 12, 24 and 32 VDC.

Suction Lift

These pumps are not self priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line, and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on the non-leaking foot valve for starting capability..

Performance

170m-A87 Pump

Dimensions

Oberdorfer 170m-A87
