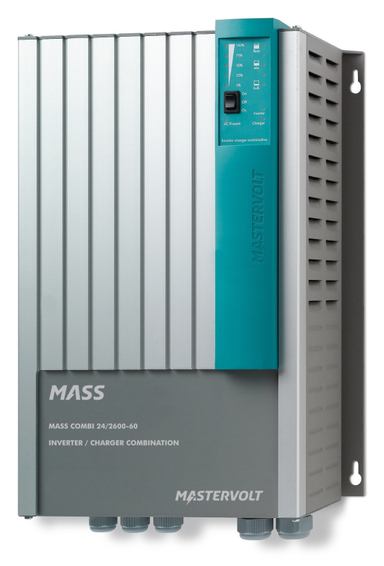

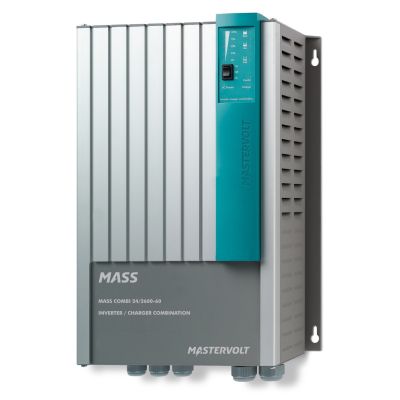

Mastervolt Mass Combi 24/2600-60 MB (230V). The powerful 3-step+ battery charger guarantees maximum battery life and can simultaneously charge two battery banks. The inverter with high peak power starts even the heaviest loads. Battery Charger: 24v / 60 amps Inverter: 2600 W. More specs below. This version can be integrated into a MasterBus system. Part Number: 36022602
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
The exceptionally reliable Mass Combi series offers a lot of power at a highly competitive price. In addition, the four models are also available in two customer-friendly variations with remote control or MasterBus.
The powerful 3-step+ battery charger guarantees maximum battery life and can simultaneously charge two battery banks. The inverter with high peak power starts even the heaviest loads. A built-in distribution system switches between grid and inverter power, while two separate AC outputs allow users to connect critical loads to a preferred group.
Key Benefits
Compact, lightweight and no hum thanks to HF technology.
High yield and more power from your batteries.
Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life.
Charges two individual battery banks simultaneously.
Quiet, powerful inverter with 200 % peak power.
Power Assist: prevents blown fuses.
Pure sine wave energy prevents failures and damage to sensitive equipment such as adapters.
Dual AC outputs to separate critical equipment from heavy loads.
Higher yields possible via parallel switching (only for 2200 and 2600 W models).
Professional connections ensure fast installation and operational security.
CE approved and E-marking for mobile applications.
Mass Combi with MasterBus (MB Version)
To integrate the Mass Combi into a MasterBus system in a simple manner, Mastervolt can deliver all Mass Combi models in a MasterBus version. This model includes the Mass Combi inverter charger complemented by a MasterBus Combi interface. The interface integrates a Mastervolt Mass Combi in a MasterBus network and allows it to be operated or monitored via a EasyView 5 panel or PC.
Technical Specifications
Specifications sine wave inverter
Nominal DC voltage
24 V (19-31 V)
Output voltage
180-250 V (adjustable) 50/60 Hz (± 0.05 %)
Output waveform
true sine
Continuous power at 25 °C / 77 °F, cos phi 1
2550 W
Max. peak load
4000 W
Max. efficiency
≥ 90 %
Max. ripple on DC (battery at full load)
< 5 %
Energy saving mode consumption
0,5 W
Parallel configuration
yes, up to 2 units
Synchronise with mains/generator
yes
DC consumption at 230 V
< 9 W
Specifications battery charger
Input voltage range
180-265 V
Max. charge current at 25 °C / 77 °F
60 A at 28.5 V, adjustable
Primary AC consumption (full charge)
8.5 A
Secondary charger output voltage
24 V
Secondary charger output current
5 A
No-load power consumption on AC
< 15 W
Battery temperature sensor
yes, included
Battery voltage sense
automatic compensation
Specifications transfer system
AC input 1
50 A (25 A switched, to short break output)
AC output 1
25 A (short break output)
AC output 2
50 A (power output)
AC input fuse
yes, resettable
Transfer speed
semi-seamless (10 ms typical)
Transfer voltage range
180-265 V
Transfer frequency range
45-65 Hz
General specifications
Display/read-out
LED display
Dimensions, hxwxd
496 x 318 x 156 mm 19.5 x 12.5 x 6.1 inch
Weight
11 kg 24.3 lb
Delivered with
MasterBus Combi Interface
Approvals
CE, ABYC, E4, RMRS
Technical specifications
Charge characteristic
IUoUo, automatic / 3-step+ for Gel/AGM/MLI/ flooded/spiral/traction
Max. current power output
50 A
Max. current shortbreak / inverter output
25 A
Recommended battery capacity
~ 120-360 Ah (based on gel batteries, may differ for other types)
Ground relay
yes, configurable
Temperature range (ambient temp.)
-25 °C to 60 °C, derating > 25 °C -13 °F to 140 °F
Cooling
maintenance-free vario fans
Protection degree
IP23 (vertical mounting)
Safety class
IEC protection class I
Humidity protection
conformal coating, max. 95 % relative humidity, non condensing
Protections
over temperature, over load, short circuit, high/low battery voltage
