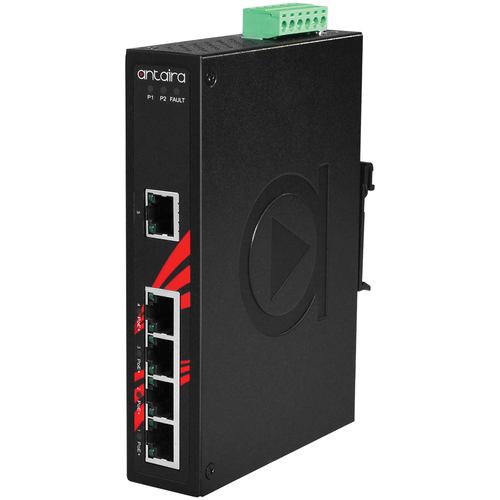

Antaira Technologies’ LNP-0500G-T is an industrial gigabit PoE+ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G-T is an ideal solution for rapid, unmanaged gigabit network expansion with PoE+ capabilities.
Good replacement for Raymarine HS-5 Network Switch.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Antaira Technologies’ LNP-0500G-T is an industrial gigabit PoE+ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G-T is an ideal solution for rapid, unmanaged gigabit network expansion with PoE+ capabilities.
The LNP-0500G-T is IP30 rated and DIN-rail mountable and has extended temperature range of -40°C to 75°C. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.
Key Features
Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*10/100/1000Tx Ethernet Port, Auto MDI
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
10.0Kbytes Jumbo Frame Support
Surge Protection 2,000 VDC Support
ESD Protection 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 48~55VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support Included
Operating Temp. EOT: -40~75C
5-Year Warranty
Specifications
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Dimensions
30 x 142 x 99 mm
Ethernet Port
4*10/100/1000Tx (PSE: 30W/Port) +1*10/100/1000 auto negotiation speed, Full/Half duplex mode, and auto MDI connection
This adapter has a RayNet Female connector at one end, and a RJ45 Female Gland connector at the other end. The Gland makes the RJ45 Female socket watertight. A typical use for this cable would be to convert a RJ45 Digital Radar Cable to a RayNet Radar Cable so you can connect the cable directly into the new HS-5 Network Switch or directly into the back of an ace or gS Series multifunction display.
Part Number: A80247 Save $3.00 with Code at Checkout
The RayNet connector is used for connecting Raymarine network switches and SeaTalkhs devices to the multifunction display via RayNet cables. Also required for connecting a crossover coupler if only one device is being connected to the display's Network connector.
Part Number: A80151 Save $3.25 with Code at Checkout
