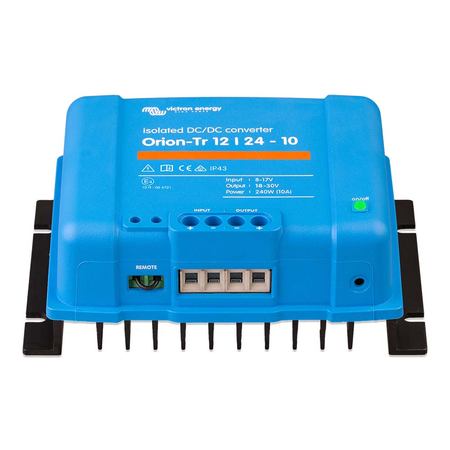

Victron Orion-TR DC Converter 12/24-10A (240W) Isolated w/Galvanic Isolation
VICTRON ORION-TR DC CONVERTER 12/24-10A (240W) ISOLATED The remote on/off eliminates the need for a high current switch in the input wiring.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
Victron Orion-TR DC Converter Features
Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel.
High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards.
Screw terminals No special tools needed for installation.
Input fuse (not replaceable) On 12 V and 24 V input models only.
Adjustable output voltage Not intended for battery charging. Please consider using an Orion-Tr Smart for battery charging.
Specifications of Orion-TR DC Converter 12/24-10A - Isolated w/Galvanic Isolation
Input voltage range
8-17 V
Under voltage shut down
7 V
Under voltage restart
7,5 V
Nominal output voltage
24,2 V
Output voltage adjust range
20-30 V
Output voltage tolerance
+/- 0,2 V
Output noise
2 mV rms
Cont. output current at nominal output voltage and 40 °C
10 A
Maximum output current (10 s) at nominal output voltage
