Poly Flex Marine General Purpose Mounting System EL Series
Used in general applications where vibration can be an issue, including small / large pumps, electrical boards, water makers, air conditioning units, compressors, generators, mobile light towers, forklift engines, material handling equipment, operator’s cabins, construction, and mining equipment.
Reference: EL Series

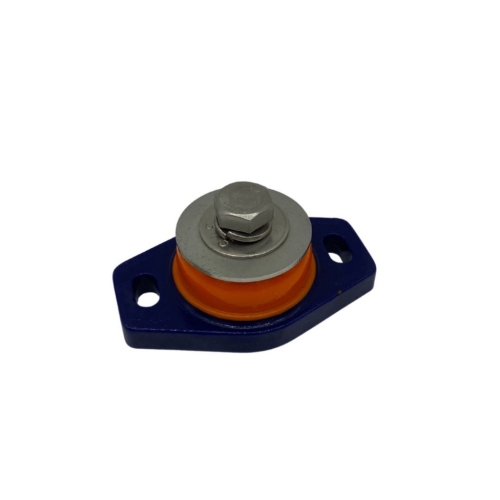

POLY FLEX MARINE GENERAL PURPOSE MOUNTING SYSTEM EL SERIES
Poly Flex general purpose mounts are a cost-effective choice for many different applications where the installation may or may not have thrust, lateral and vertical movement. These mounts are moulded from heat cured polymer alloys which have excellent durability, longevity, and oil/fuel resistance.
Used in general applications where vibration and movement can be an issue, including
- Air Conditioning Units
- Water Makers
- Pumps
- Motorhomes & Campers
- Compressors
- Generators
- Defence
- Concrete Pumps
- Mobile Light Towers
- Construction Equipment
- Mining Equipment

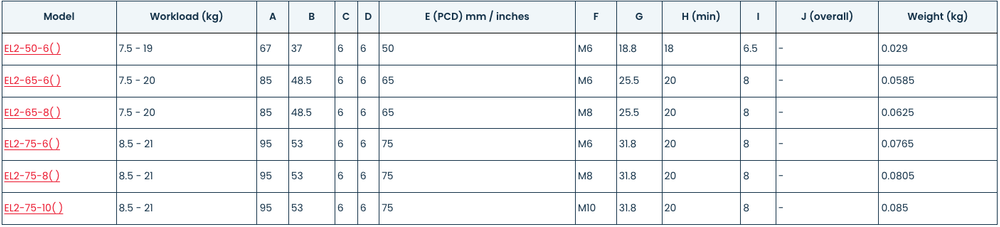

EL Series General Purpose Mount Series Specifications
Working loads stated are the range between (2.0 to 3.0mm) static deflection for each mount.
The working load per mount corresponding to 3.0mm static deflection should be regarded as the MAXIMUM allowable load.
Note:- An increased load will produce a larger static deflection. In general the max, capacity of the mounts = 1.5 x working load.
