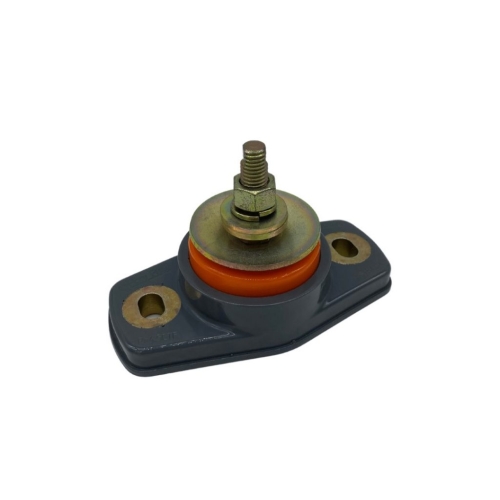

Poly Flex Marine Gen Set Mounting System P .5F & P 8F Genset Mount Series
The mounts are designed to isolate vibration of the gen set under working conditions for a smoother isolation. Designed as a failsafe system to avoid the gen set from tearing away from its anchor point in rough conditions or in the event of a capsize. Easy replacement of cores makes it a reusable mount, not a throw away mount.
Reference: P# .5F & P# .8F Genset Mount Series
POLY FLEX MARINE GEN SET MOUNTING SYSTEM P# .5F & P# .8F MOUNT SERIES
Poly Flex Gen Set mounting systems have the same structure and fabrication as the adjustable mounting systems, but do not include the adjusting stud component. Shims may be required for fine-tuning adjustment.
Gen Set mounting systems are designed for marine, generators, water makers and industrial machinery.
- Moulded from light weight heat cured polymer alloys which are long lasting and oil/fuel resistant.
- Fail-safe / captured design.
- Easy replacement of core / hardware.
- No electrolyses between aluminium and steel structures.
- Can handle shock and impact due to a 400% stretch factor in base material.
- Controls thrust in all directions due to core design
- All metal components are SA5 Cobalt Zinc Coated to inhibit rust for extended life.

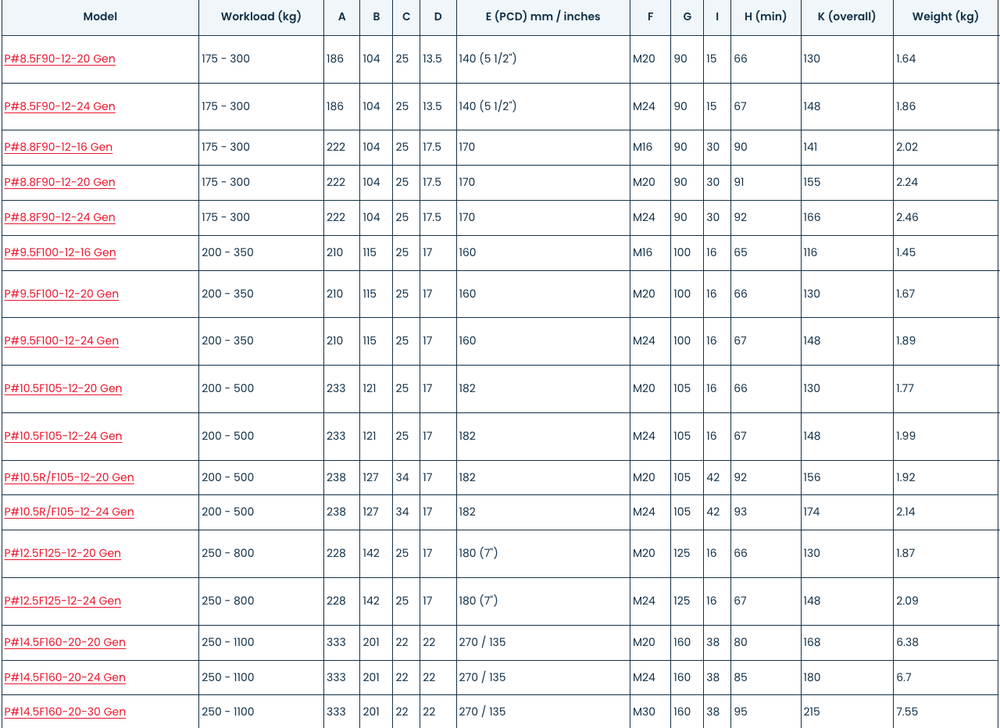

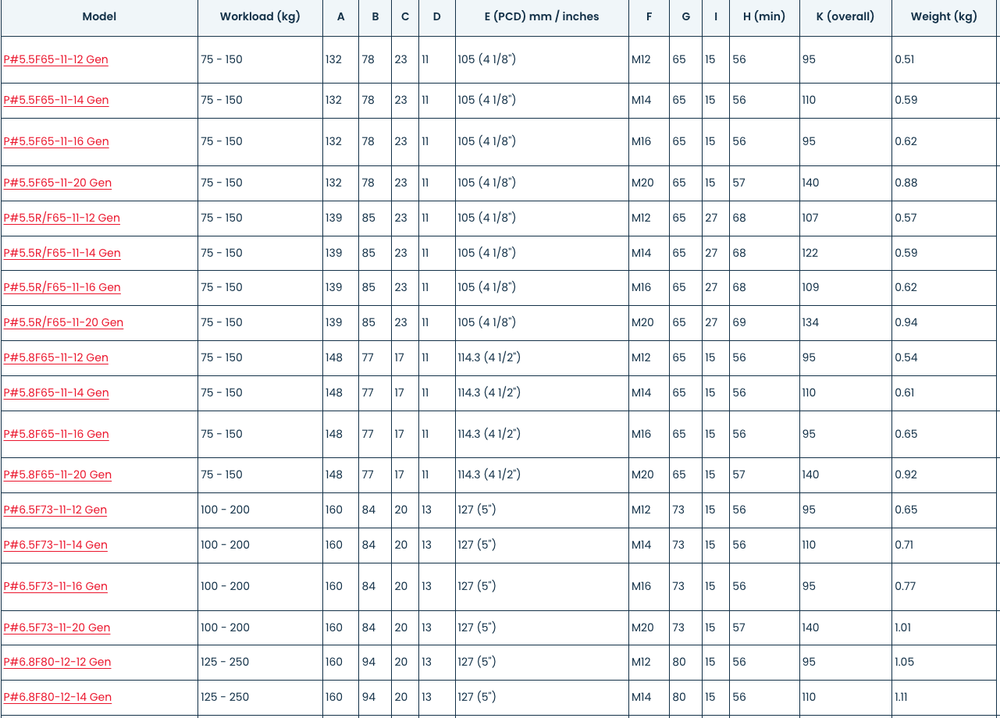

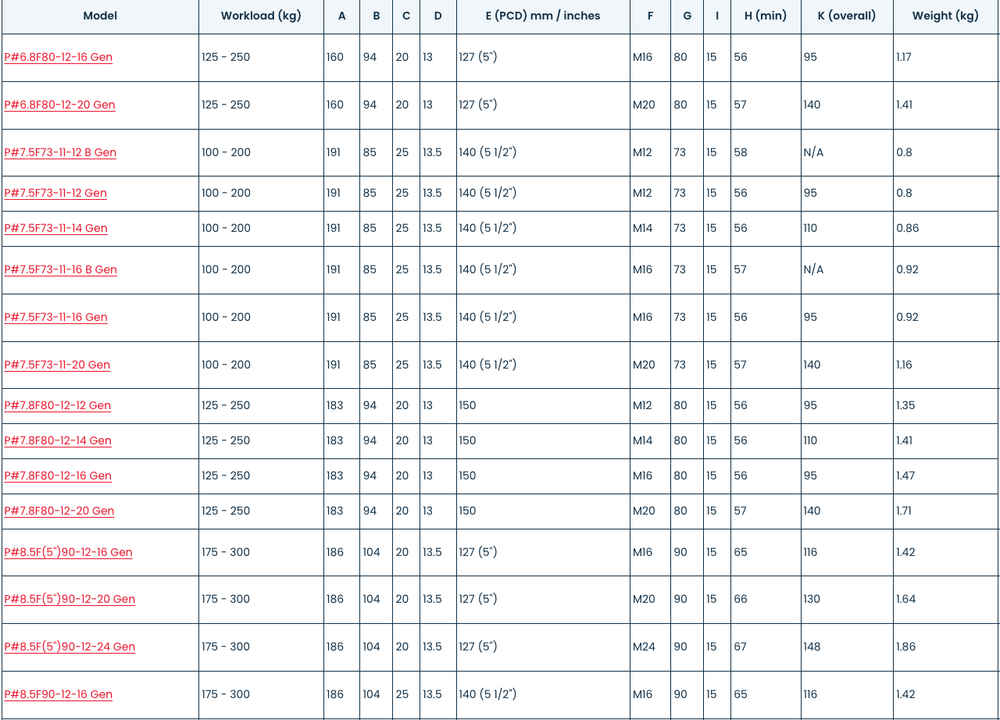

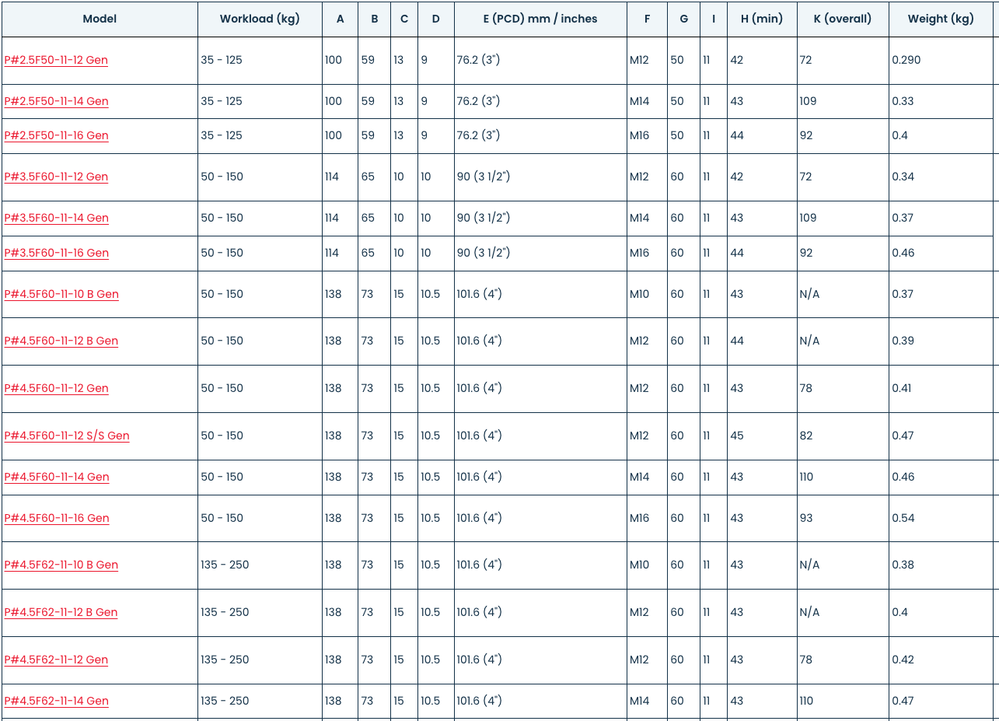

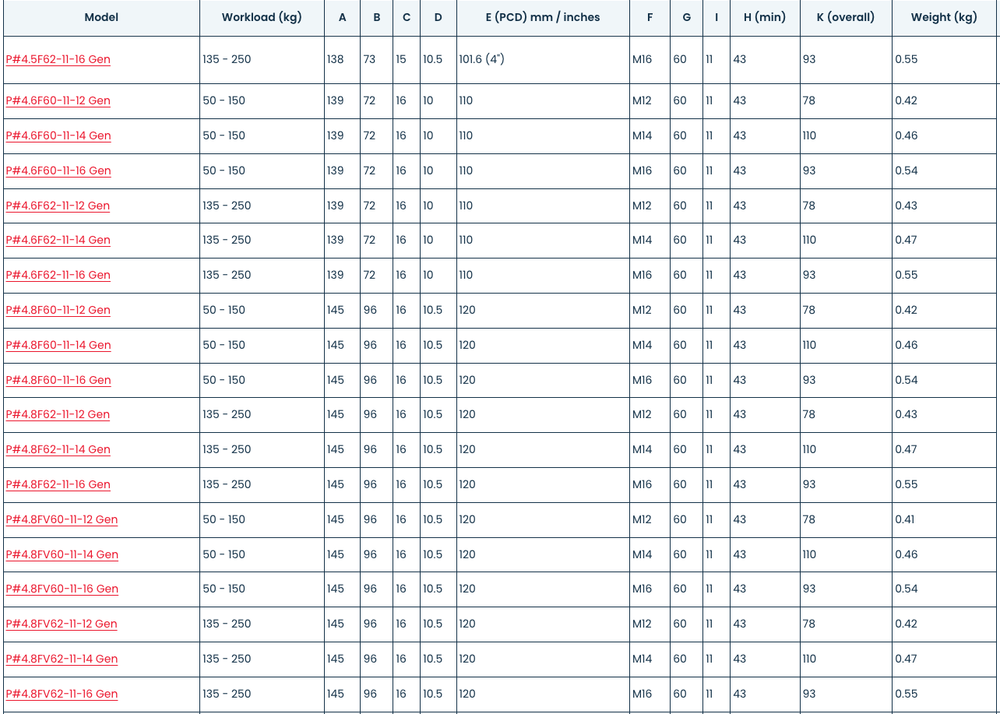

P# .5F & P# .8F Genset Mount Series Specifications
