CPX3 12v Gypsy Only - 3/8" Chain 5/8" Line
Lewmar CPX3 Vertical Windlass 12v Gypsy Only for 3/8" Chain 5/8" Line - Lighter than the all stainless steel deck unit, the CPX deck unit features an alloy base and a reduced number of parts without compromising on performance. Easy to service. State of the art motor/ gearbox. Highly reliable, lightweight, high-performance windlass. Product ID 6672211003.
Reference: 6672211003
$2,069.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

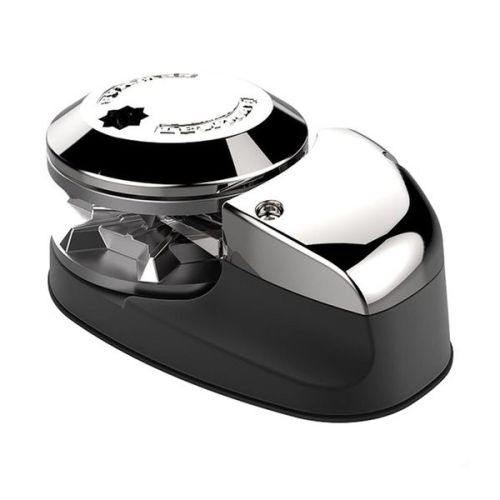

Lewmar CPX3 Vertical Windlass 12v Gypsy Only - 3/8" Chain 5/8" Line
Lewmar is a brand that stays in constant contact with boat designers, boat builders and owner's associations to ensure that their products remain at the forefront of development.
Following discussions with key customers, Lewmar identified the need for a high-quality product that is lighter than the all stainless steel deck unit. Subsequently, the CPX deck unit features an alloy base. With an emphasis on reliability, they have reviewed the architecture of the windlass and reduced the number of parts without compromising on performance. This also makes the windlass easier to service. Lewmar, strives to keep up to date with new developments in the motor/ gearbox industry, constantly testing new products coming to market, and the CPX Windlass is no exception. The result is a highly reliable, light weight, high performance windlass.
Features
The Lewmar CPX3 features tried and tested worm-wheel gearbox architecture and uses quality materials throughout - hard anodised aluminium for the base and cast stainless steel for the gypsy top cap and chain pipe cover.
- Lightweight design
- 1000W motors
- Highly reliable gearbox design
Specifications of the Lewmar 6672211003
| Model | Motor Power Watts | Max Pull | Working Load | Max Line Speed | Normal Current Draw | Circuit Breaker |
| CPX3 12V | 900W | 1675lbs (759 kg) | 473lbs (214 kg) | 92 ft/min (28 m/min) | 85A | 110A |
Gypsy
| Number | Chain | Rope |
| 003 | 10mm ISO, Campbell 3/8" S3, Lewmar 9.5mm G40 | 3-strand and 8-plait |
This set contains:
(01) 68000350: CIRCUIT BREAKER 110 AMP 9328
(01) 68001045: CPX3 12V MGB PLUS CONTACTOR
(01) 68001051: CPX 003 GYPSY ASSEMBLY
(01) 69000480: CPX 2/3 Go DECK UNIT
(01) 68000593: GUARDED ROCKER SWITCH
(01) 65002489: WINDLASS X HANDLE
