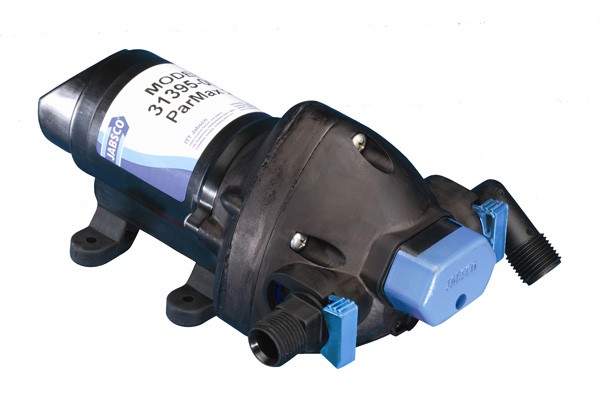

JABSCO Par-Max 2.9GPM Water Pressure System

JABSCO 31395-0094 is designed for vessels requiring a quiet, smooth flow, on-demand pump. These new pumps feature a three chamber diaphragm design offering a smooth flow from .65 GPM to 2.9 GPM, & come with a built-in Pulsation Eliminator to control unwanted cycling and noise. 1/2" - 14 Male Pipe or 1/2" (13 mm) Hose Barb. Permanent Magnet, Ball Bearing Totally Enclosed. Motor rating: IP 54.
Reference: JA 31395-0094

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
JABSCO 31395-0094 - Par-Max 1.9GPM Water Pressure System

Self-Priming to 10 ft. (3 m). Runs Dry Without Damage. Smooth Flow. Snap-in Ports. Built in Bypass - less Pulsation, reduces the need for an Accumulator Tank.


Smooth Flow
Self-Priming up to 10 feet (3m)
Dry running capability
Soft noise absorbing mounts
Snap-fit port fittings
Built-in bypass — less pulsation
Reduces need for accumulator tank
Corrosion resistant materials
Thermal overload protection
Motor rating: IP 54
CSA listed
ISO 8846 MARINE (ignition protection)


Motor: Permanent Magnet, Ball Bearing Totally Enclosed.
Not for Continuous Duty. Intermittent Duty Only.
Pump: Body - Polypropylene
Diaphragm - Santoprene
Valves - EPDM
Fittings: (2) 1/2” - 14 Male pipe / (2) 1/2” (13 mm) Hose Barbs
Dimensions - Inches (mm): 4-3/4" x (121) x 6" (152) x 9" (229)
Weight lb. (kg): 3.5 (1.6 kg)
Voltage VDC: 24
Amp Draw (A) @ 10 psi (0.7 bar): 2.2
Fuse Size (A): 5
Open Flow GPM (l/min): 2.9 (11)
MAX PSI (bar): 50 (3.4)
