35400-0000 Flangemount 4'' Blower 12vdc , 250CFM
- Tough Reinforced Plastic Housing
- Mount to Any Flat Surface
- Slip-On Inlet Ducling Connection
- Efficient High Volume Air Flow
- Low-Current Draw.

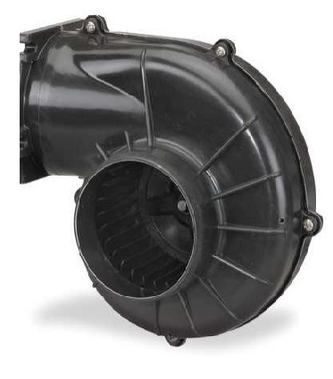

JABSCO 35400-0000 Flangemount 4" Blower
Jabsco blowers are primarily intended for intermittent duty cycles such as evacuating fuel vapors from bilge areas. If desired, they also may be used for other general air circulation applications with longer duty cycles. However, when doing so, it should be noted that the maximum motor life is approximately 1000 hours. Therefore, the blower should only be used for applications if this length of service is acceptable.
CFM Mount Volts Amps Inlet (in) Outlet (in)
250 Flange 12 VDC 10.0 4 3 5/8
Components of Blower
1. Motor Kits 115 vdc 187530320
2. Blower Housing 357060000
3. Blower Wheel 357140000
4. Blower Housing 357050000
5. Screw 8x 5/8 ss self 355080000
