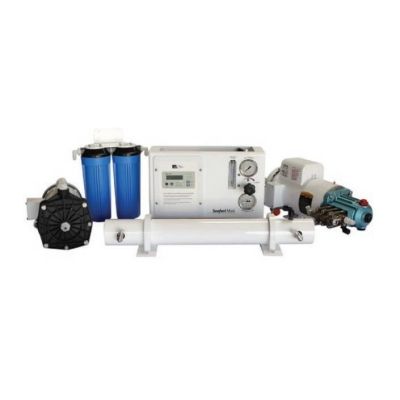

Seafari Mini 350 GPD (Modular)

Seafari Mini 350 GPD (Modular)

The Seafari Mini watermaker offers a larger range of fresh water production without the space restrictions. The Seafari Mini is the perfect solution for boats with little space to spare. Offering the largest production capacity for its size, you can be sure to have plenty of fresh water, without wasting precious storage or engine room space. Self-contained.

15 Gal / 55 Lit per hour. 350 Gal / 1,325 Lit per day.

Features

-Extremely quiet, smooth, and with complete vibration isolation.
-Exclusive Solid Salinity Meter, an essential tool for product water monitoring.
-Space efficient, one of the smallest compact watermakers available.
-Modular configuration allows flexible installation options
-A failsafe Product Water Diversion Valve allows only safe drinking water to enter storage tanks.
-High rejection, high yield, commercial grade, and chemical resistant Membranes.
-Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.

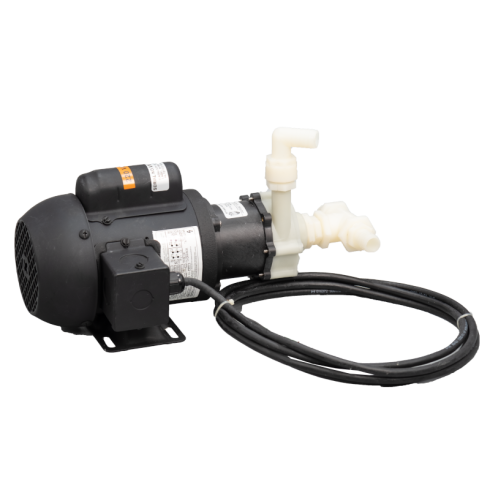

-Exclusive high efficiency Booster Pump
-Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Water Flush Timing (optional).

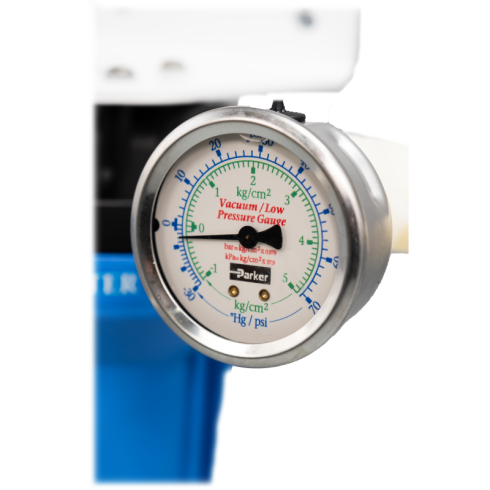

-Stainless Steel, liquid filled exterior and interior Pressure Gauges for accurate measurement of system functions and corrosion resistance.
-Flow Meter for visual monitoring of the product water flow
-All High Pressure Connections are composite 316L Stainless Steel for maximum corrosion and rust resistance.
-Water Quality Indication LED

Specifications

Product Water Produced / Hour    +-15% 850 psi / 56 Bar, 77 F / 25 C & 35,000 ppm TDS typical sea water
Salt Rejection (Chloride Ion)    Minimum 99.2%, Average 99.4%
Product Water Temperature    Ambient to feed water temperature
Salinity Monitoring    The salinity monitoring components of the system give a continuous readout in micromhos per cubic centimeter, are temperature compensated, and of a fail safe design.
Salinity Range    Designed for seawater use up to 50,000 ppm TDS (Nacl) (typical seawater salinity is 35,000 ppm.)
Temperature Range    Min. 33 degrees F / .5 degrees C Max. 122 degrees F / 50 degrees C
System Feed Water Flow    50Hz, 3.5 gpm / 13.2 lpm; 60Hz, 3 - 4.2 gpm / 11.4 - 15.9 lpm
Reverse Osmosis Membrane    High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element.
Chlorine Tolerance    0.1 ppm
pH Range    3-11 (typical seawater pH is 8)
Dimensions (L x W x H)
Weight    89 lbs / 40.4 kg.

System Pressure

Feed Water Minimum    6 psi / .41 bar / .42 Kg/cm2
Feed Water Maximum    35 psi / 2.41 bar / 2.46 Kg/cm2
System Operation    Seawater @ 35,000 ppm & 77° F / 25° C
Nominal: 850 psi / 56.5 bar / 57.66 Kg/cm2. (Brackish varies w/ppm)
Feed Inlet    1/2" MNPT (Male National Pipe Thread, Amer. Std)
Brine Discharge    1/4" FNPT (Male National Pipe Thread, Amer. Std)
Product    1/4" FNPT (Female National Pipe Thread, Amer. Std)

Mini 350 (HP Motor)

Phase: Single / Single
Hz: 60 / 50
Voltage: 110 / 230 // 110 / 230
HP: 1
Running Amps: 12.8/6.4 // 12.4/6.2
Start Up Amps: 39 / 20 // 37 / 19

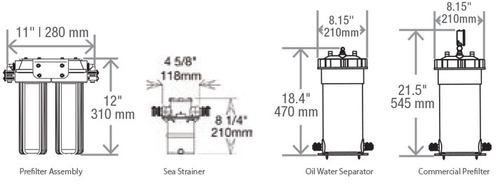

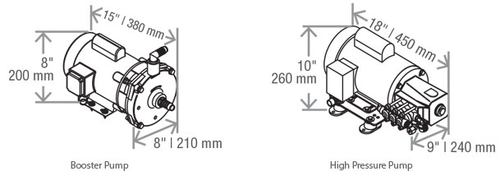

Dimensions
