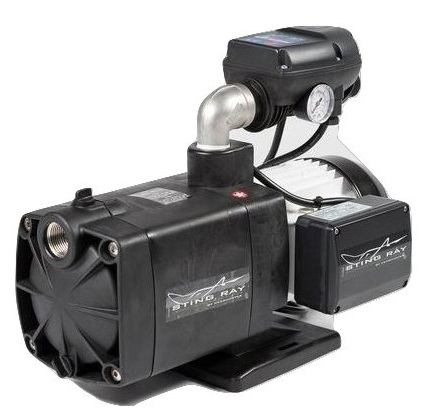

HEADHUNTER Stingray Saltwater Pressure System - 230V 60Hz

The Stingray Saltwater Pressure System is designed specifically for continuous duty in the harsh marine environment, and is the perfect solution for saltwater toilet flushing, live bait wells, aquaculture, and anywhere else high flow/pressure salt or fresh water is needed. Featuring an innovative multi-stage impeller system driven by a quiet TEFC motor, is able to deliver over 20 GPM and up to 67 psi. The pre-installed Remora pump control turns the pump on when system pressure drops to 40 psi, and off when the pump reaches a no flow condition, allowing it to operate with or without a pressure accumulator tank as well as providing dry-run protection. An easy to view control panel with L.E.D. diagnostics and dry run visual alarm makes troubleshooting and system monitoring a breeze.

Intelligent Pump Control and Dry Run Protection

The Stingray comes equipped with the pre-installed Remora pump control, which automatically activates the pump when system pressure drops to 40 PSI and shuts it off during a no-flow condition. This on-demand functionality allows the system to operate efficiently with or without a pressure accumulator tank. Built-in dry run protection safeguards the system from damage in the event of water loss. Troubleshooting is made simple with an easy-to-read control panel featuring LED diagnostics and a dry-run visual alarm.

Rugged, Marine-Grade Construction

Designed to withstand harsh marine conditions, the Stingray utilizes a quiet TEFC (Totally Enclosed Fan Cooled) motor. This closed design circulates outside cooling air over the motor while providing increased protection against weather, dirt, and moisture.

Applications:

High pressure/high flow continuous duty rated saltwater pressure system with dry run protection. Can be used with or without pressure accumulator tank. Ideal for saltwater washdowns, and live bait wells.

Product Details/ Specifications:

FAQs

What is the maximum flow rate of the Headhunter Stingray SR-230?

The Headhunter Stingray SR-230 delivers a maximum open flow rate of over 20 GPM (76 LPM), with specific performance outputs of 16 GPM at 20 PSI and 10 GPM at 40 PSI.

Do I need an accumulator tank to run the Headhunter Stingray pump?

No, the Headhunter Stingray can operate efficiently with or without a pressure accumulator tank thanks to its integrated Remora pump control system.

What happens if the Headhunter Stingray SR-230 runs out of water?

The system includes built-in dry run protection that automatically shuts the pump down to prevent internal damage when a no-flow condition is detected, triggering a visual LED alarm on the control panel.

What applications is the Headhunter Stingray pump designed for?

The Stingray is a continuous-duty pump designed for high-pressure marine applications, including saltwater washdowns, live bait wells, pressurized toilet flushing, and aquaculture.

What size are the plumbing connections on the Headhunter Stingray SR-230?

The SR-230 pump features 1-inch female pipe thread (FPT) and 1-inch male pipe thread (MPT) ports for suction and discharge.

What are the electrical requirements for this Headhunter Stingray model?

The SR-230 model is designed strictly to operate on a 230V 60Hz electrical supply to power its 1-horsepower motor.

How does the Headhunter Stingray control system pressure?

The pre-installed Remora pump control activates the pump when system pressure drops to 40 PSI and deactivates it when no flow is detected.

Is the motor on the Headhunter Stingray protected from the marine environment?

Yes, the pump features a Totally Enclosed Fan Cooled (TEFC) motor that circulates outside cooling air over the unit while sealing internal components from weather, dirt, and moisture.
