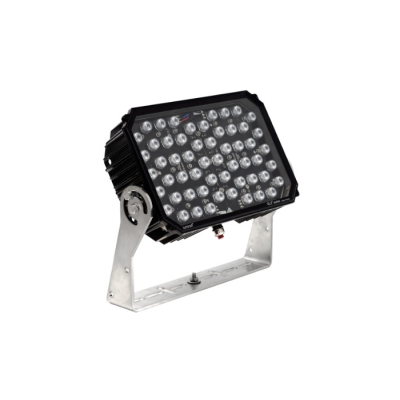

Luminell RLX D G3 Floodlight
The RLX D G3 is the third generation RLX D Floodlights. Compared to the RLX D G2, the G3 has in-house developed PSU which enables a significant increase in power and lumen output from a similar sized
Reference: GLX-RLX-D-G3-FLOODLIGHT
Luminell / Marine lighting
Luminell RLX D G3 Floodlight
The RLX D G3 is the third generation RLX D Floodlights. Compared to the RLX D G2, the G3 has in-house developed PSU which enables a significant increase in power and lumen output from a similar sized product. The enhanced electronic and mechanic capabilities also enables it to be an excellent platfo
The RLX D G3 is the third generation RLX D Floodlights. Compared to the RLX D G2, the G3 has in-house developed PSU which enables a significant increase in power and lumen output from a similar sized product. The enhanced electronic and mechanic capabilities also enables it to be an excellent platform for Ex Zone1. It’s large connection box, possibility for 2xM20 + 2xM25 cable glands, 0-10V DIM as standard, DAL
Supplied by Citimarine Store as part of the Luminell marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Initial lumious flux | Up to apx 31.000 lm |
| Light colour temperature | min. 70 |
| Color Rendering Index | 5.000K (+/- 500K) as standard, other color temperatures also available |
| Beam angle | 10 spot beam – 120 wide beam |
| Input voltage | 100 - 277 VAC 130 - 300 VDC |
| Power consumption | 240W |
| Ambient temperature (Ta) | – 40° C to + 55° C |
| Ingress protection | IP66/67 |
| Brand | Luminell |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
