ECD16K-HV

Calificaciones y evaluaciones de los clientes

410 A, 16,000 BTU, 115 V, 60 Hz

MFG#: 207500016

207500316

Al comprar este producto puede obtener hasta 170 Citimarine points. Su carrito totalizará 170 points that will be converted into a voucher of $17.00 towards your next purchase! Must be to collect points.

Más

Climate Control At the Touch Of a Button

ECD R-410A kits are available in 6,000, 10,000, and 16,000 BTU/hr cooling and reverse-cycle heating capacities, so you can size the system to suit your boat for ultimate comfort in a range of climates.

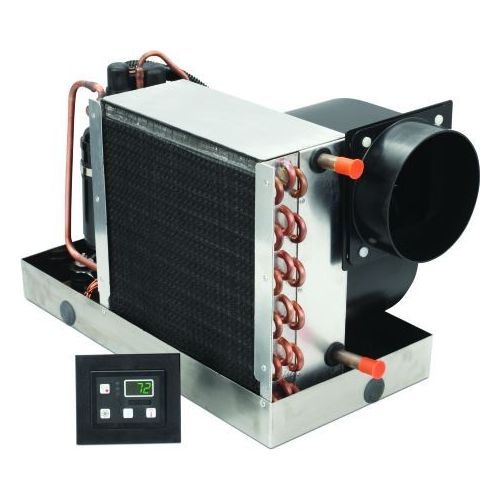

All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD units are operated by a compact digital control/display (included) that features a bright green LED and large buttons. For added installation convenience, the plastic electrical box can be mounted remotely.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity. The ECD6K will replace a 5,000 to 7,000 BTU/hr unit; the ECD10K will replace an 8,000 to 11,000 BTU/hr unit; and the ECD16K will replace a 12,000 to 16,000 BTU/hr unit.

The Installation Kit includes all air distribution and plumbing components that, when combined with the Retrofit Kit, comprises an entirely new air conditioning system installation that is suited for treating one interior space. If air conditioning a second interior space is desired, add the Dual Duct Kit which includes a "Y" duct ring connector, 12.5 ft. (3.8 m) of flexible insulated duct, and a circular supply air grille.

Technical Specifications



Capacity (BTU/h): 16000

Voltage (V): 115

Cycle (Hz): 60

Phase (Ph): 1

Full Load Amps (FLA) Cool (A): 10.5

Full Load Amps (FLA) Heat (A): 13.7

Full Load Amps (FLA) Blower: N/A

Locked Rotor Amps (LRA) (A): 62

Refrigerant Type: 410A

Sound Level: N/A



Descargar
