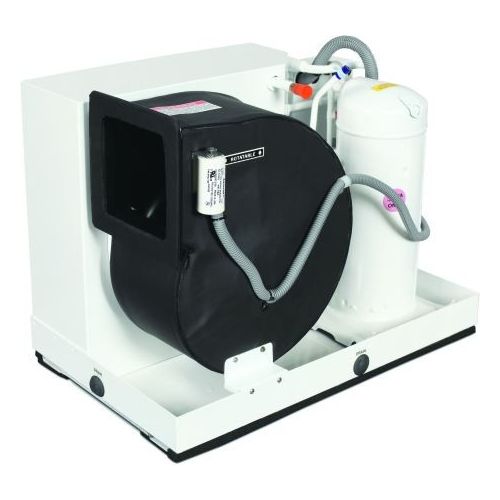

Vector Compact Unit, R410A with Passport I/O Control (Display not included)

MFG#: 205410000

205410000

Al comprar este producto puede obtener hasta 484 Citimarine points. Su carrito totalizará 484 points that will be converted into a voucher of $48.40 towards your next purchase! Must be to collect points.

Más

High-Capacity Air Conditioning In a Compact Package

The Vector Compact series of self-contained marine air conditioners offers 18,000, 27,000, and 30,000 BTU/hr of cooling and reverse-cycle heating.

All models offer direct expansion operation in a compact, low-profile unit, with a seawater-cooled condenser and choice of controls. Vector Compact units are designed for installation under a settee or berth, in a locker or cabinet, or other convenient location.



Key benefits



  • Compact design reduces unit size by up to 25% of the original Vector Rotary's size
  • High-velocity (HV) fully-insulated blowers are rotatable
  • Blowers are rotatable and fully insulated
  • Patented design increases cooling capacity and dehumidification
  • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
  • Unique compressor and reversing valve mounting reduces vibration
  • Electrical box is installed within unit footprint on 18K and 27K models; remotely mounted for 30K models
  • High-efficiency rotary and scroll compressors are quiet and more reliable
  • Condenser coil's cupronickel-encased copper condenser coil provides maximum heat transfer and high resistance to corrosion
  • Evaporator coil employs an enhanced fin design and rifled copper tubing to provide maximum capacity
  • 27K and 30K models available in 3-phase power on a special order basis



Technical Specifications

Capacity (BTU/h)
27000
Voltage (V)
230
Cycle (Hz)
60
Phase (Ph)
1
Full Load Amps (FLA) Cool (A)
8
Full Load Amps (FLA) Heat (A)
11.2
Full Load Amps (FLA) Blower (A)
1.64
Locked Rotor Amps (LRA) (A)
58.3
Refrigerant Type
410A
Sound Level
N/A
