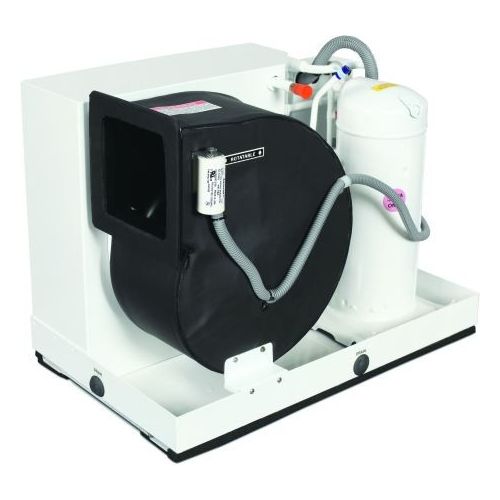

Vector Compact Unit, R410A with Passport I/O Control (Display not included)

MFG#: 205410010

205410010

Al comprar este producto puede obtener hasta 376 Citimarine points. Su carrito totalizará 376 points that will be converted into a voucher of $37.60 towards your next purchase! Must be to collect points.

Más



High-Capacity Air Conditioning In a Compact Package







The Vector Compact series of self-contained marine air conditioners offers 18,000, 27,000, and 30,000 BTU/hr of cooling and reverse-cycle heating.







All models offer direct expansion operation in a compact, low-profile unit, with a seawater-cooled condenser and choice of controls. Vector Compact units are designed for installation under a settee or berth, in a locker or cabinet, or other convenient location.







Key benefits



  • Compact design reduces unit size by up to 25% of the original Vector Rotary's size
  • High-velocity (HV) fully-insulated blowers are rotatable
  • Blowers are rotatable and fully insulated
  • Patented design increases cooling capacity and dehumidification
  • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
  • Unique compressor and reversing valve mounting reduces vibration
  • Electrical box is installed within unit footprint on 18K and 27K models; remotely mounted for 30K models
  • High-efficiency rotary and scroll compressors are quiet and more reliable
  • Condenser coil's cupronickel-encased copper condenser coil provides maximum heat transfer and high resistance to corrosion
  • Evaporator coil employs an enhanced fin design and rifled copper tubing to provide maximum capacity
  • 27K and 30K models available in 3-phase power on a special order basis



  • Technical Specifications
    Capacity (BTU/h)
    18000
    Voltage (V)
    230
    Cycle (Hz)
    60
    Phase (Ph)
    1
    Full Load Amps (FLA) Cool (A)
    6.4
    Full Load Amps (FLA) Heat (A)
    8.3
    Full Load Amps (FLA) Blower (A)
    1.15
    Locked Rotor Amps (LRA) (A)
    32
    Refrigerant Type
    410A
    Sound Level
    N/A
