SQUF27-HV/230V

Calificaciones y evaluaciones de los clientes

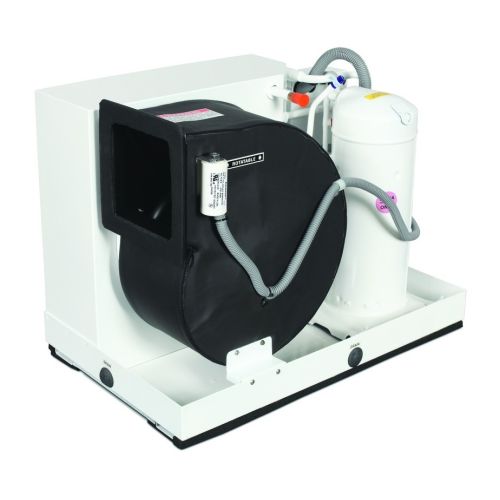

Stowaway Compact ("Q"), w/410A, SQUF27C-HV 410, RMTBX,230V, 60 HZ

MFG#: 205511800

205511800

Al comprar este producto puede obtener hasta 484 Citimarine points. Su carrito totalizará 484 points that will be converted into a voucher of $48.40 towards your next purchase! Must be to collect points.

Más

High-Capacity Air Conditioning In a Compact Package

The Stowaway Compact series of self-contained marine air conditioners offers 18,000 and 27,000, and 30,000 BTU/hr of reverse-cycle cooling and heating.

All models offer direct expansion operation in a compact, low-profile unit, with a seawater-cooled condenser and choice of controls. Stowaway Compact units are designed for installation under a settee or berth, in a locker or cabinet, or other convenient location.

Stowaway Compact systems feature high-velocity (HV) blowers. A painted galvanized metal chassis is standard on 18K and 27K models; a stainless-steel chassis upgrade is available for enhanced durability.

Key benefits

  • Compact design reduces unit size by up to 25% of the original Vector Rotary's size
  • High-velocity (HV) fully-insulated blowers are rotatable
  • Blowers are rotatable and fully insulated
  • Patented design increases cooling capacity and dehumidification
  • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
  • Unique compressor and reversing valve mounting reduces vibration
  • Electrical box is installed within unit footprint on 18K and 27K models; remotely mounted for 30K models
  • High-efficiency rotary and scroll compressors are quiet and more reliable
  • Condenser coil's cupronickel-encased copper condenser coil provides maximum heat transfer and high resistance to corrosion
  • Evaporator coil employs an enhanced fin design and rifled copper tubing to provide maximum capacity
  • 27K and 30K models available in 3-phase power on a special order basis.

Technical Specifications

Capacity (BTU/h)
27000
Voltage (V)
230
Cycle (Hz)
60
Phase (Ph)
1
Full Load Amps (FLA) Cool (A)
8.1
Full Load Amps (FLA) Heat (A)
11.1
Full Load Amps (FLA) Blower (A)
1.64
Locked Rotor Amps (LRA) (A)
58.3
Refrigerant Type
410A
Sound Level
N/A
