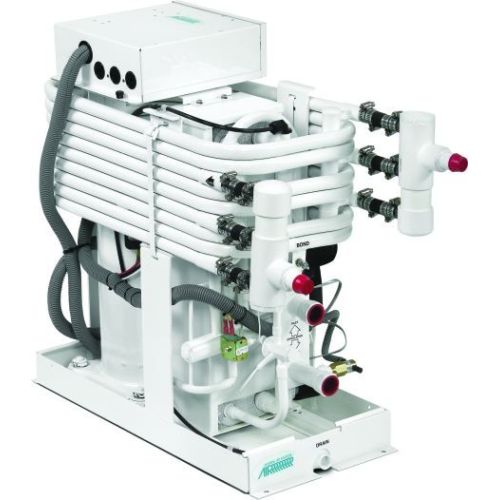

MCGV48-230V/3PH

MCGV48-230V/3PH

By buying this product you can collect up to 1149 Citimarine points. Your cart will total 1149 points that will be converted into a voucher of $229.80 towards your next purchase! Must be to collect points.

MCGV48-230V/3PH

Calificaciones y evaluaciones de los clientes

MCGV Modules Reverse Cycle, R410A Refrigerant, DDC Control (Not Included)

MFG#: 260152011

Más

The Standard In Chilled Water Marine Air Conditioning

Marine Air’s MCG chilled water series is available in capacities ranging from 24,000 (2 ton) to 180,000 (15 ton) BTU/hr. Featuring a compact base design, MCG modules can be staged to provide a larger system, which is easily retrofitted and serviced in the field. Up to six 15-ton stages can be configured for a system total of 1,080,000 BTU/hr, or 90 tons.

Each refrigerant circuit is hermetically sealed and factory pre-charged with R-410A refrigerant. This environmentally safe refrigerant has exceptional thermodynamic properties and maximizes system efficiency.

Key benefits

    • Compact footprint for installation flexibility

    • Aluminum construction is corrosion resistant and lightweight

    • Up to six modules can be multiplexed for larger capacities

    • Electrical box can be remotely mounted up to 6 ft. (1.8 m)

    • Bi-flow expansion valves balance the system between heat and cool modes

    • Compact stainless-steel brazed plate heat exchangers for maximum efficiency

    • Spiral-fluted cupronickel condenser coil provides maximum heat transfer and corrosion resistance

    • Digital Diagnostic Controller (DDC) monitors and protects the system

    • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant

    • Charged, tested, and leak checked at the factory

    • Meets or exceeds all applicable standards and regulation

    • Charge Guard protection provides sealed access ports, ensuring environmental protection and chiller module integrity



Technical Specifications

Capacity (BTU/h)

48000

Voltages @ 50/60Hz (V)

230

Cycle (Hz)

60

Phase (Ph)

3

Full Load Amps (FLA) Cool (A)

11.3

Full Load Amps (FLA) Heat (A)

14

Locked Rotor Amps (LRA) (A)

120

Refrigerant Type

R410A

Sound Level

N/A

Component Type

Condensing Units
