Engineered for Environmentally Safe R-410A Refrigerant

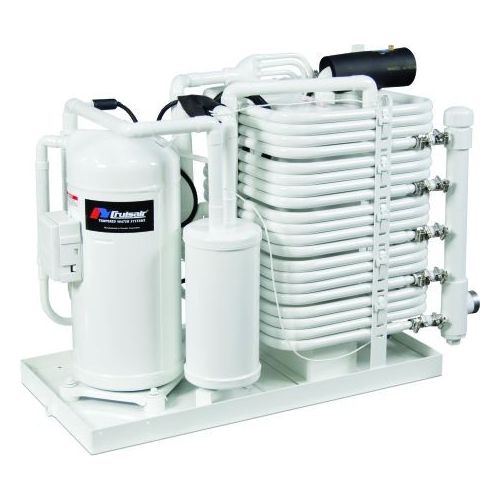

The Cruisair MTD is a modular chiller engineered for optimal use of the new environmentally safe R-410A refrigerant. This tempered-water unit provides installation flexibility, reliability, maximum performance, and easy accessibility for maintenance and repair.
Flexible hose improves alignment for customer connections, and all seawater connections are reinforced with stainless-steel for added strength. Thermal expansion valves optimize performance over a wide range of conditions, while a hot-gas bypass valve maintains heating performance in cold seawater and helps prevent water freezing in the heat exchanger. With heating performance effective in cold seawater temperatures as low as 38°F (3.5°C), the need for separate fossil fuel or electric water heaters is eliminated in most applications.
The MTD is available in capacities of 24,000 to 120,000 BTU/hr (2 to 10 tons), and you can use multiple modules in any combination to achieve the total desired capacity. Custom frame and water-manifold installation for multiple units are also available. A reverse-cycle unit, the MTD provides reliable cooling and heating.
Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
Modular design for installation flexibility
Scroll compressors standard
Larger drain fittings for faster condensate drainage
Stainless-steel reinforced seawater connections
Flexible hose improves connection alignment
Removable seawater manifolds allow cleaning of condenser tubing
Integrated loop-water strainer and flow switch
Oversized heat exchangers for loop temperatures of 40°F (4.4°C) in cooling and 120°F (49°C) in heating
Thermal expansion valve for optimal performance over a range of conditions
Hot-gas bypass valve maintains heating performance in cold seawater and helps prevent water freezing in the heat exchanger
Full Load Amps (FLA) Cool (A)
Full Load Amps (FLA) Heat (A)
Locked Rotor Amps (LRA) (A)
