B260 BTH w/ High speed fairing kit

B260 BTH w/ High speed fairing kit

By buying this product you can collect up to Your cart will total 113 points that will be converted into a of $11.30 towards your next purchase! Must be to collect points.

B260 BTH w/ High speed fairing kit

Customer ratings and reviews

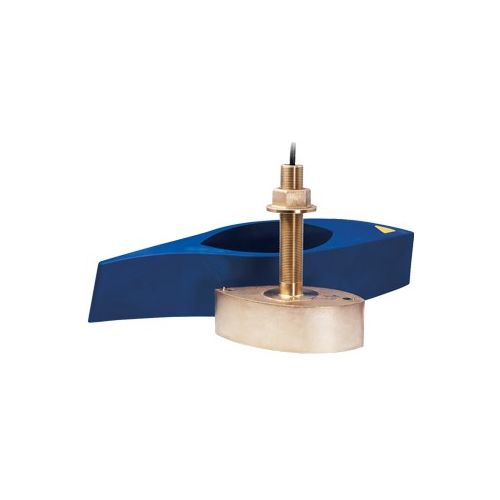

Depth transducer w/ temp,50/200KHz, 1000 Watt, 19/6° beam angles, with temperature sensor. B260 bronze thru-hull (1.3" shaft) with hi-speed fairing block. Includes connector for BSM-1 sounder module, used NS Series units.

MFG# 000-0106-82

In Stock: 0


Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)


Key Features

High Performance

The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing. Or for small to medium sized commercial fishing vessels.

  • Deep Water Fishing

    Excellent for deep water bottom and structure fishing up to 800m/2625ft.

  • Depth/Temperature

    Calculate depth and temperature from one compact sensor.

  • Easy To Install

  • Wide Operating Range

    From 1 knot to 45 knots.

  • Highly Accurate Sounding

    Provides extremely accurate echosounding data, even at speeds of over 30 knots.

  • Dual Elements

    The narrow, 6° beam 200 kHz ceramic offers excellent resolution and and crisp image detail for bottom fishing. The seven-element 50 kHz array has a wider 19° beam for deepr blue-water fishing.

  • Bronze

    Built to withstand the environemnt.

  • Plug & Play Connectivity

    Easily connect to BSM-1, NSS, NSE or NSO.
