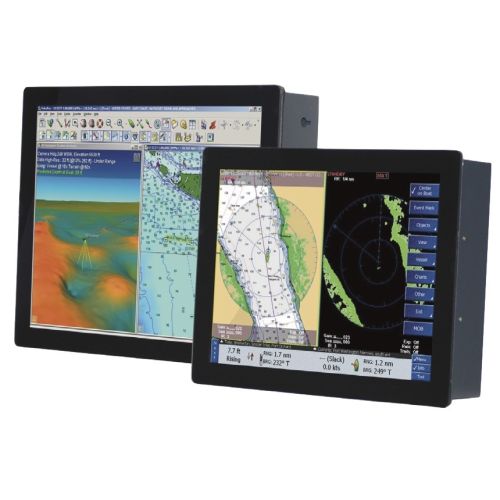

KEP Glass Bridge 17" Sunlight Display
Sunlight Readable Glass Bridge 17" Marine Display. Inputs include 3-VGA, 2-DVI, 3-Composite and 1-S-Video, built in picture in picture (PIP) and picture by picture (PBP). Incl VGA cable, power cable, control panel, hardware, and manual.
MFG#: KEPMGB-17
KEP Marine displays are no longer available. Please check Seatronx for a replacement
Referencia: KMGB-17
7.999,00 $
Free Shipping on $99 Order
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
KEP Marine’s KEPM GB are designed with the same technology and features as our KEPM displays but with a special mounting option. The KEPM GB glass bridge displays allow maximum screen size in the smallest spaces available. They are ideal for helms with limited space and can be mounted side by side to save even more precious space. Display adjustments and settings are controlled using a remote unit which can be mounted near the display or hidden in the cabin space. All KEP Marine monitors can communicate with RS-232 control systems such as Crestron and AMX.
Display Features
- Modern sleek design
- Exceptional sunlight-viewing
- Maximized screen size for space-restricted helms
- Compatible with RS232 control systems such as the popular Bridgeview and Crestron
- Large selection of inputs
- Night mode and dim to black
Specifications
| Parameter | Value |
| LCD Display | 17" TFT Active Matrix Panel |
| Brightness | 1300nit |
| Max. Resolution | 1280x1024 Wide |
| Contrast | (500:1) |
| View Angle | 80/80 (H) 75/75 (V) |
| Display Colors | 16.7M |
| Operating Temp | (-10 to 60°C) |
| Non Operating Temp | (-20 to 70°C) |
| Standard Inputs | 3-VGA’s (RGB Analog 0.7V Peak to Peak) UXGA, 2-DVI’s SXGA |
| Standard Video Inputs | 3-Composites, 1-S-Video |
| Color | KEP Gray |
| Input Power | 12/24Vdc universal input |
| Power Consumption | 7.6 A at 12Vdc 3.5A at 24Vdc |
| Dimming | Wide dimming range to Black |
| Red Mode | YES |
| Picture-n-Picture | Yes three stages |
| Front Window | AR hard coated glass |
| Bezel & Rear Case | Marine aluminum UV protected powder coating |
| Enclosure | Nema4/IP66 from front |
| EN60945 | Yes |
| Communications | YES RS232 or Ethernet |
| Controls | Front Mount |
| Bezel Dimensions, Cutout Dimensions | See Drawing |
| Install Depth | 3.682” |
| Weight | 17.59 lbs |
| Humidity | 95% |
| FCC, CE, IC Approved | Yes |
| WEEE & ROHS | Yes |
| DDC Compliant | Yes |
| Auto Video Detection | Yes |
| Auto Video Scaling | Yes |
