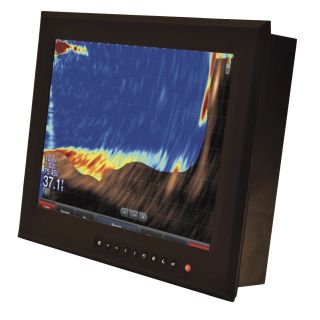

KEP M Series 19" Display

Sunlight Readable 19" Marine Display. Inputs include 3-VGA, 2-DVI, 3-Composite and 1-S-Video, built in picture in picture (PIP) and picture by picture (PBP). Includes VGA cable, power cable, mounting hardware, and manual.


KEP Marine displays are no longer available. Please check Seatronx for a replacement

Referencia: KM-19
8.000,00 $

Shipping calculator
Free Shipping on Orders over $99
Free Shipping on $99 Order
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

KEP Marine’s In-Sight™ displays, KEPM, are designed for the marine industry. These rugged displays deliver crisp text, fast response and optimized viewing angles under any outdoor or indoor lighting conditions with or without touch screen. In-Sight’s advanced LCD contrast and brightness enhancements make the entire screen readable - even in direct sunlight. As the sunlight becomes more intense contrast and screen brightness increase to improve the viewer comfort and confidence.



•Sunlight Readable

•Dimmable to black

•High brightness, 1000nit

•Video and VGA inputs




Parameter< Value

LCD Display 19" TFT Active Matrix Panel

Brightness 1000nit

Max. Resolution 1280x1024

Contrast (800:1)

View Angle 80/80 (H) 85/85 (V)

Display Colors 16.7M

Operating Temp (-10 to 55C)

Non Operating Temp (-20 to 70c)

Standard Inputs 3-VGA’s (RGB Analog 0.7V Peak to Peak) UXGA, 2-DVI’s SXGA

Standard Video Inputs 3-Composites, 1-S-Video

Color KEP Gray

Input Power 12/24Vdc universal input

Power Consumption 7.7 A at 12Vdc; 3.6 A at 24Vdc

Dimming Wide dimming range to Black

Red Mode YES

Picture-n-Picture Yes three stages

Front Window AR hard coated glass

Bezel & Rear Case Marine aluminum UV protected powder coating

Enclosure Nema4/IP66 from front

EN60945 Yes

Communications YES RS232 or Ethernet

Controls Front Mount

Bezel Dimensions, Cutout Dimensions  A:17.898", B:15.359", C:17.156", D:14.596", E:3.682"

Install Depth 3.682”

Weight 19.84 lbs

Humidity 95%

FCC, CE, IC Approved Yes


DDC Compliant Yes

Auto Video Detection Yes

Auto Video Scaling Yes
