M844DW3 - 16 KW

Calificaciones y evaluaciones de los clientes

16KW,115V,60HZ,@1800RPM, 1PH

MFDG#: M844DW3

M844DW3

Al comprar este producto puede obtener hasta 1644 Citimarine points. Su carrito totalizará 1644 points that will be converted into a voucher of $164.40 towards your next purchase! Must be to collect points.

Más

(OVERWEIGHT ITEM)

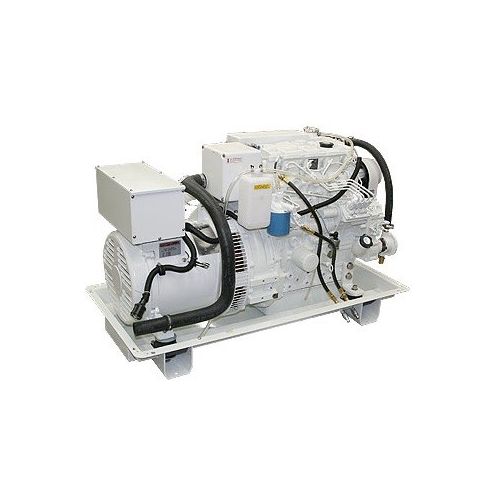

The M844DW3 is powered by a naturally aspirated, four cylinder, 2.2 liter (135 cid) Lugger diesel, this set has the low end torque needed to start bigger electric motors without breaking a sweat.

The M844DW3 meets US EPA Tier III emission standards to protect the environment you enjoy.

Vibration isolation mounts, air intake silencer and cast manifolds make the set remarkably smooth and quiet. A high attenuation sound enclosure is optional.


Northern Lights generator sets are simple to operate and maintain. A 20 foot wire harness and control panel lets you operate it from your boat’s bridge. The engine’s DC electrical system uses reliable relays instead of delicate printed circuit boards. If a failure should occur, you can simply plug in an inexpensive relay. All service points are on one side within easy reach. The sea water pump is up front for easy impeller changes.



Specifications



Cylinders:: 4 inline

Bore: 3.30 in (84 mm)

Stroke: 3.9 in (100 mm)

Displacement: 135 cid (2.2 ltr)

Fuel System: Mechanical

Aspiration: Natural

Length: 46.0 in (1169 mm)

Width: 22.8 in (580 mm)

Height: 26.7 in (680 mm)

Weight: 897 lbs (397 kg)

Enclosure Length: 46.0 in (1169 mm)

Enclosure Width: 22.8 in (580 mm)

Enclosure Height: 28.1 in (714 mm)

Enclosure Weight: 125 lbs (57 kg)
