M773LW3 - 9 KW

M773LW3 - 9 KW

By buying this product you can collect up to 1259 Citimarine points. Your cart will total 1259 points that will be converted into a voucher of $251.80 towards your next purchase! Must be to collect points.

M773LW3 - 9 KW

Calificaciones y evaluaciones de los clientes

9 KW, 115V, 60HZ,  @1800RPM, 1 PH

MDF#: M773LW3

M773LW3

Más

(OVERWEIGHT ITEM)

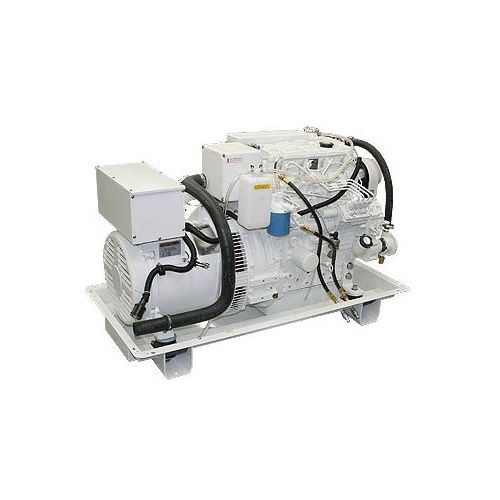

The M773LW3 incorporates the best
Northern Lights features into one compact and versatile package. It meets growing onboard power demands without asking for
a lot of engine room space.


The M773LW3 was engineered to deliver its power at a quiet, long lasting 1800 rpm. Driven by a high-torque, 69 cubic inch, Lugger diesel and fitted with a powerful W-Series generator end, the M773LW3 has
the power to start electric motors with ease.

The M773LW3 features single-side
service, which means it can be mounted with the non-service side facing a bulkhead without compromising routine service access.


Other proven systems are utilized
throughout. The DC system has simple relays, instead of a printed circuit board, for quick, inexpensive field repairs. Low oil pressure,
high coolant temperature and high exhaust temperature safety shutdowns are standard.


An automatic voltage regulator keeps voltage to within ±1%. Vibration isolating plateform
mounts, gleaming white polyurethane paint and a plug-in wire harness complete the
package.



Specifications



Cylinders: 3 inline

Bore: 3.03 in (77 mm)

Stroke: 3.19 in (81 mm)

Displacement: 69 cid (1.13 ltr)

Fuel System: Mechanical

Aspiration: Natural

Length: 35 in (889 mm)

Width: 22 in (559 mm)

Height: 23.8 in (604 mm)

Weight: 537 lbs (244 kg)

Enclosure Length 35 in (889 mm)

Enclosure Width 22 in (558.8 mm)

Enclosure Height 24.2 in (614 mm)

Enclosure Weight 60 lbs (27 kg)
