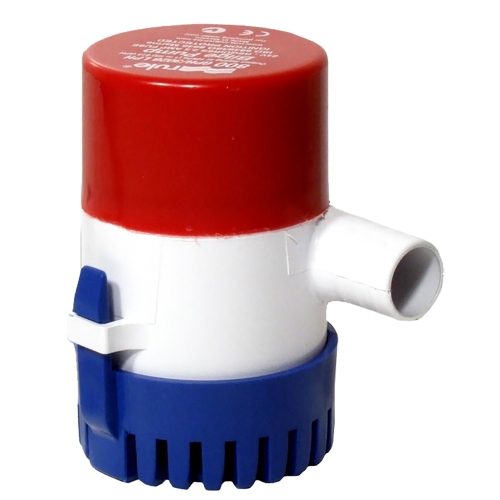

Rule 800 GPH Legacy Shower Drain Replacement Pump - 24V - Fits 97A-24 & 98A-24 Shower Drain Boxes

Rule 21RSB 800 GPH Bilge Pump - These newly redesigned submersible bilge pumps build on the solid engineering and relentless testing that has made previous Rule models industry standards. Innovative improvements add function and protection not seen in bilge pumps.  Water flow has been increased without increasing amperage draw by using an optimized impeller. In the event the impeller is jammed by debris, a new thermal cut-off shuts down the pump to prevent the motor from overheating and possibly causing a fire.

To reduce odors caused by residual water that travels back from the thru-hull, Rule has added an improved check valve to keep the water in the hose.  To assist the check valve and prevent air locking, hidden vents have been added to the body. Maintenance and inspection is simplified by the addition of a threaded discharge; simply un-snap the pump from the base and unthread it from the hose. With these innovations, Rule has taken bilge pumps to the next level and has set the bar even higher.

Key Benefits of Rule 21RSB 800 GPH Bilge Pump, 24V

• Compact pump for smaller vessels.
• Tough plastic body.
• Quick release inlet strainer allows rapid cleaning.
• Low amp draw conserves batteries.
• Built-in Thermal Cut-Off. Motor rated for 1500-hour life.
• Check Valve included for Back Flow Prevention.
• Vented body to prevent air locking.
• Threaded port for easier installation and maintenance.
• For automatic operation use Rule Float Switches.
• Base not interchangeable with old range but can be fitted to existing screw holes.

Features

• Connections: For 19mm (3/4") bore hose
• Dimensions: 95mm high, 60mm base diameter
• Fuse Size: 5AMP
• Output: Up to 50 liters/minute (11 gallons/minute)
• Max. recommended discharge head 2M
• Packaged Dimensions: L:15.00 x H:8.00 x W:19.00cm
• Actual Weight: 0.38kg  (Approx. 0.58kg packed)
