LTM-1800 75 GPH - 1800 GPD

Previous Next

By buying this product you can collect up to 1406 Citimarine points. Your cart will total 1406 points that will be converted into a voucher of $281.20 towards your next purchase! Must be logged in to collect points.

LTM-1800 75 GPH - 1800 GPD

Customer ratings and reviews

The Village Marine LTM-1800 Watermaker is compact and semi-modular, offering completely flexible installation. With a capacity of 75 GPH (1800 GPD) / 284 LPH, this desalinator is ideal for power boats, sailboats, and small-to-mid-sized commercial vessel applications. The LTM-1800.

MAIN INTERNAL MEMBRANE NOT INCLUDED

More info

Parker Racor Village Marine LTM-1800 Watermaker - For Sail Boat and Motor Boat Applications

The Village Marine LTM-1800 Watermaker is a great first mate for fishing, ocean crossings, extended voyages, or blue water cruising. It features a semi-modular and compact frame format that is able to be mounted above or below the water line, creating installation flexibility. (The boost pump and prefilters are supplied as loose items). The LTM-1800 uses the remote membrane rack.

The LTM-1800 is able to produce 75 GPH (1800 GPD), making this the best desalinator for fresh water independence when dock water supplies are unreliable. An ideal watermaker for power boats, sailboats, and small-to-mid-sized commercial vessel applications.

Technology:

• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors

Meters/Monitors:

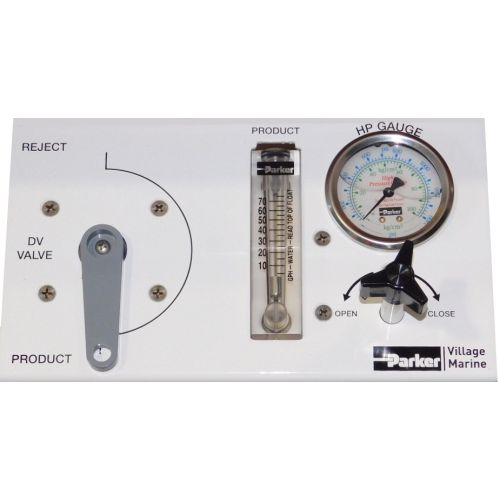

• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges

Service/Maintenance:

• Manual freshwater flush system (included standard)

Pump:

• Compact stainless steel high pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items

Materials:

• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or fresh water

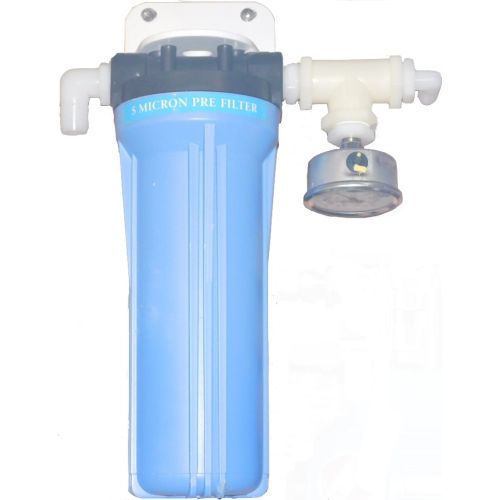

• Sediment prefilter at 5 micron rating

Safety:

• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards

Accessories:

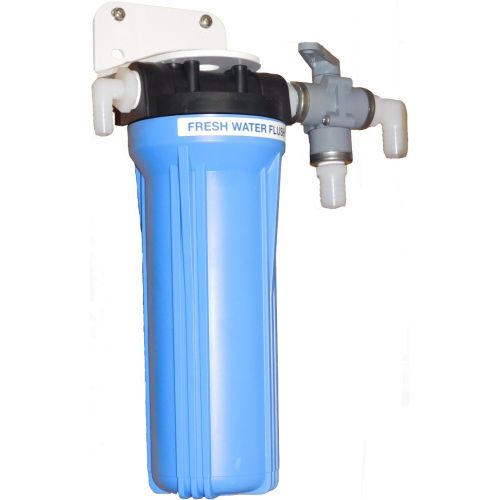

• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable

Specifications:

Brand: Village Marine
Application: Leisure
Configuration: Semi-Modular
Product Type: Watermaker
Voltz: 220, 380, 460

Ph: 1, 3

Hz: 50, 60

Amps: 7, 7.5, 12

GPH: 75

GPD: 1800

LPH: 284
Pump: Aqua Pro® Pump, Titanium high pressure pump, Magnetic drive low pressure pump
Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane(s)

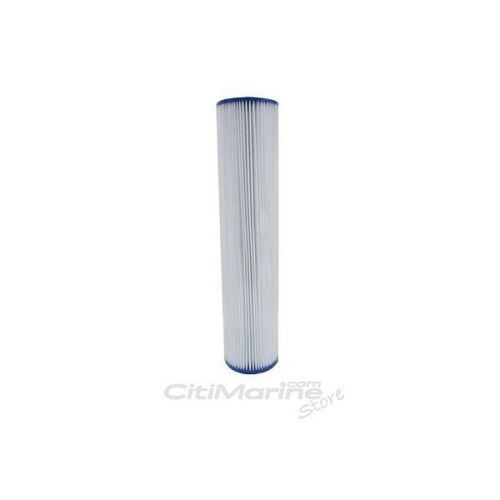

Filters: 5 micron pre-filter
Power Options: AC
Pressure Adjustment: Automatic
Weight: 168 Lbs.
Electrical Requirements: See Brochure Under Product Support

Specifications:

ltm 1800 specs

Dimensions:

Village Marine LTM 500 Plumbing Diagram

Optional Salinity Monitor and Diversion Valve

Village Marine stand alone salinity monitor system can be fitted to models Sea Quencher, Little Wonder or LTM watermakers or to any make or model needing addition or replacement of the salinity control. The compact assembly provides water quality reading and an automatic diversion valve to ensure that only fresh water flows to the potable water storage tank.

Salinity Monitor and diversion Valve 90-0081

Salinity Monitor and diversion Valve 90-0081

*Salinity Monitor Sold Separately
