LTM-500 21 GPH - 500 GPD

Customer ratings and reviews

The Village Marine LTM-500 Watermaker is compact and semi-modular, offering completely flexible installation. With a capacity of 21 GPH (500 GPD) / 79 LPH, this desalinator is ideal for power boats, sailboats, and small-to-mid-sized commercial vessel applications. The LTM-500.

MEMBRANE NOT INCLUDED

More info

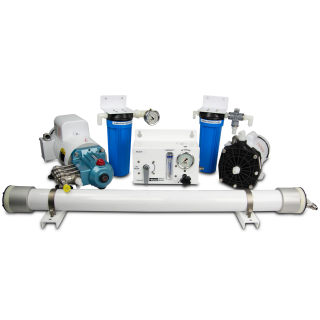

Parker Racor Village Marine LTM-500 Watermaker - For Sail Boat and Motor Boat Applications

The Village Marine LTM-500 Watermaker is a great first mate for fishing, ocean crossings, extended voyages, or blue water cruising. It features a semi-modular and compact frame format that is able to be mounted above or below the water line, creating installation flexibility. (The boost pump and prefilters are supplied as loose items). The LTM-500 uses the remote membrane rack.

The LTM-500 is able to produce 21 GPH (500 GPD), making this the best desalinator for fresh water independence when dock water supplies are unreliable. An ideal watermaker for power boats, sailboats, and small-to-mid-sized commercial vessel applications.

Technology:

• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors

Meters/Monitors:

• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges

Service/Maintenance:

• Manual freshwater flush system (included standard)

Pump:

• Compact stainless steel high pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items

Materials:

• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or fresh water
• Sediment prefilter at 5 micron rating

Safety:

• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards

Accessories:

• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable

Specifications:

Brand: Village Marine
Application: Leisure
Configuration: Semi-Modular
Product Type: Watermaker
Voltz: 110, 220, 230, 230-460

Ph: 1, 3

Hz: 50, 60, 50-60

Amps: 18, 8, 6-4

GPH: 21

GPD: 500

LPH: 79
Pump: Aqua Pro® Pump, Titanium high pressure pump, Magnetic drive low pressure pump
Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane
Filters: 5 micron pre-filter
Power Options: AC
Pressure Adjustment: Automatic
Weight: 92 Lbs.
Electrical Requirements: See Brochure Under Product Support

Dimensions:

Village Marine LTM 500 Plumbing Diagram

Optional Salinity Monitor and Diversion Valve

Village Marine stand alone salinity monitor system can be fitted to models Sea Quencher, Little Wonder or LTM watermakers or to any make or model needing addition or replacement of the salinity control. The compact assembly provides water quality reading and an automatic diversion valve to ensure that only fresh water flows to the potable water storage tank.

Salinity Monitor and diversion Valve 90-0081
