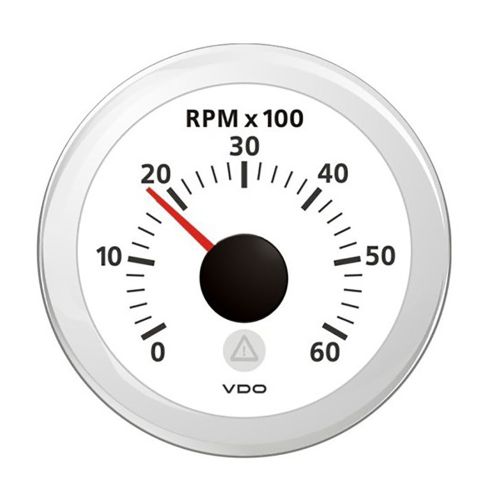

Veratron 2-1/16" (52mm) Viewline Tachometer - 0 to 6000 RPM - 8 to 32V - White Dial & Bezel
VERATRON 2-1/16" (52MM) VIEWLINE - TACHOMETER
*Product discontinued - Please see other Veratron VDO Gauges, here!
Reference: A2C59512348
$59.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
2-1/16" (52mm) Viewline Tachometer - 0 to 6000 RPM - 8 to 32V - White Dial & Bezel
ViewLine 52 mm Pressure Gauges are equipped with a red warning LED as a standard. The warning point depends on the chosen pressure sensor with warning contact or can be controlled by installing a make-point switch.
Antifog plastic double lens, maximum precision and stylish design.
Specifications:
- 8 pole Tyco / Hirschmann MQS plug
- +/- 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Integrated warning alarm
- Input signal: standard Ω values
- Optional make-point switch can be connected
- Reverse polarity protection
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
Specifications
| Series | ViewLine |
| Gauge Type | Tachometer |
| Gauge Size | 2-1/16" |
| Box Set | No |
