DEU48 - Emerald Condensing Unit / R410A - 230V - 48,000 BTUs

DEU48 - Emerald Condensing Unit / R410A - 230V - 48,000 BTUs

DEU48 - Emerald Condensing Unit / R410A - 230V - 48,000 BTUs

Customer ratings and reviews

Rate / write a comment

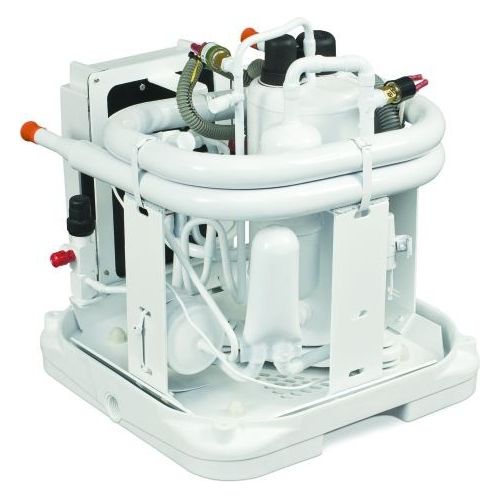

The Dometic Emerald DEU48 condenser has reversing valve, pressure switches, and service ports centrally located for easy maintenance access from any side. Vibration-isolating compressor mounting system reduces noise and vibration. Pair this with a Dometic Emerald TurboVap R-410A evaporator.

Citimariine Store Dometic 20% Off Coupon
Save $1164.00 with Code "20ac"+ Free US Shipping!

*Get $300 Cash Back With Boat Show Rebate (Click Here)

This system requires your installer's EPA certification before we can ship your unit.* Please email certificate to info@citimarine.com.

201152480

$5,820.00

Buy Now!

Add to cart

By buying this product you can collect up to Your cart will total 582 points that will be converted into a of $58.20 towards your next purchase! Must be to collect points.

More info

DEU48 - Emerald Condensing Unit / 230V - 48,000 BTUs


Dometic engineers designed the innovative Emerald Condenser series to harness and maximize the impressive performance of R-410A refrigerant while meeting all international clean air standards. The compact design of the Emerald series incorporates built-in vibration-isolating mounts, two large drain connections and numerous mounting options for installation to a smooth deck, stringer or existing rack.The molded composite no-rust drain pan is shaped to provide positive drainage even when the boat heaves and rolls. The amount of standing water in the drain pan is reduced by up to 85%, which is 8x times less than a typical drain pan.

The increase in BTU capacity is due primarily to the improved refrigerant metering design. The bi-flow thermal expansion valve for cooling provides up to a 14% increase in system capacity, which, when combined with a separate metering system for heating, attains an increase of up to 10% in heating performance. The amperage reduction of up to 27% is due to the more efficient design of the rotary compressor and properly sized refrigerant components.

Features

Dometic
VIBRATION ISOLATION     EASY ACCESS

Key benefits
  • Up to 17.5% increase in BTU capacity
  • Up to 41% amperage reduction
  • Up to 32% reduced start-up amps
  • Up to 16% smaller
  • Up to 25% lighter
  • Up to 85% reduction in standing water in the drain pan
  • Up to 15 minutes faster to install
  • Square chassis for easy installation in tight spaces
  • Three mounting options adapt to installation environments
  • Rust-free composite drain pan
  • Reconfigurable chassis allows optimal drain connections
  • Compressor vibration-isolation mounts minimize noise and vibration
  • Built-in refrigerant line filter drier reduces installation time and protects the compressor from moisture and contaminants
  • Reversing valve, pressure switches, and service ports centrally located for easy maintenance access from any side
  • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant

Technical Specifications

Specifications
GeneralSKU number: 9108893085
Model DEU: Control
US Item Name: 201152480
Model: DEU48-410 2361
DimensionsDimensions product depth: 18.8 "
Dimensions product height: 18.5 "
Dimensions product width: 16 "
Net weight: 122 lbs
ElectricalInput voltage: (AC) 230 V
Input frequency: 60 Hz
Starting current: max 105.00 A
Required AC circuit protection min: 43.00 A
Required AC circuit protection max: 75.00 A
PerformanceRefrigerant, type: R410A
Current consumption max cooling: 11.90 A
Current consumption max heating: 15.80 A


Special Boat Show Rebate

Dometic Boat Show Rebate




*The United States Environmental Protection Agency (EPA) has required that all persons handling refrigerants should be certified. Before shipping you the unit, we are required to verify your installer's certification, or you own, should you have certification.
