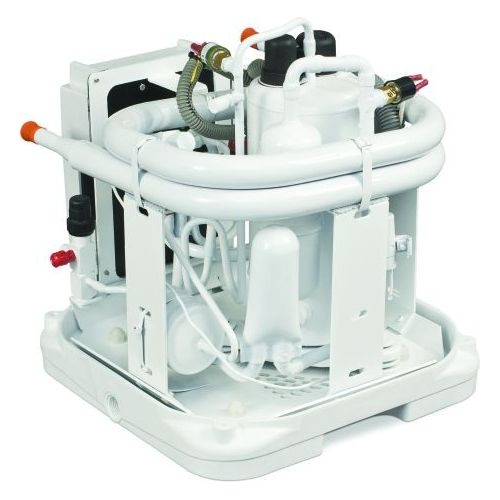

DEU16 - Emerald Condensing Unit / 230V - 16,000 BTUs


Dometic engineers designed the innovative Emerald Condenser series to harness and maximize the impressive performance of R-410A refrigerant while meeting all international clean air standards. The compact design of the Emerald series incorporates built-in vibration-isolating mounts, two large drain connections and numerous mounting options for installation to a smooth deck, stringer or existing rack.The molded composite no-rust drain pan is shaped to provide positive drainage even when the boat heaves and rolls. The amount of standing water in the drain pan is reduced by up to 85%, which is 8x times less than a typical drain pan.

The increase in BTU capacity is due primarily to the improved refrigerant metering design. The bi-flow thermal expansion valve for cooling provides up to a 14% increase in system capacity, which, when combined with a separate metering system for heating, attains an increase of up to 10% in heating performance. The amperage reduction of up to 27% is due to the more efficient design of the rotary compressor and properly sized refrigerant components.

Features


VIBRATION ISOLATION     EASY ACCESS

Key benefits

• Up to 17.5% increase in BTU capacity
• Up to 41% amperage reduction
• Up to 32% reduced start-up amps
• Up to 16% smaller
• Up to 25% lighter
• Up to 85% reduction in standing water in the drain pan
• Up to 15 minutes faster to install
• Square chassis for easy installation in tight spaces
• Three mounting options adapt to installation environments
• Rust-free composite drain pan
• Reconfigurable chassis allows optimal drain connections
• Compressor vibration-isolation mounts minimize noise and vibration
• Built-in refrigerant line filter drier reduces installation time and protects the compressor from moisture and contaminants
• Reversing valve, pressure switches, and service ports centrally located for easy maintenance access from any side
• Engineered to maximize the performance of R-410A, an environmentally safe refrigerant

Technical Specifications

Specifications
General	SKU number: 9108893460
	Model DEU: Control
	US Item Name: 201152160
	Model: DEU6-410 2361
Dimensions	Dimensions product depth: 15.1 "
	Dimensions product height: 14.1 "
	Dimensions product width: 13.3 "
	Net weight: 50.50 lbs
Electrical	Input voltage: (AC) 230 V
	Input frequency: 60 Hz
	Starting current: max 34.00 A
	Required AC circuit protection min: 11.00 A
	Required AC circuit protection max: 15.00 A
Performance	Refrigerant, type: R410A
	Current consumption max cooling: 4.30 A
	Current consumption max heating: 5.80 A

*The United States Environmental Protection Agency (EPA) has required that all persons handling refrigerants should be certified. Before shipping you the unit, we are required to verify your installer's certification, or you own, should you have certification.
